scene.py · 306 lines
"""Cafe table scene: espresso cup on a saucer, spoon, sugar cubes, croissant.
Built only from primitive meshes (cube, cylinder, cone, sphere, torus).
"""
import bpy
import bmesh
import math
from mathutils import Vector
# ----------------------------------------------------------------------------
# Helpers
# ----------------------------------------------------------------------------
def clear_scene():
bpy.ops.object.select_all(action="SELECT")
bpy.ops.object.delete(use_global=False)
for block in (bpy.data.meshes, bpy.data.materials, bpy.data.lights,
bpy.data.cameras):
for item in list(block):
block.remove(item)
def make_material(name, color, roughness=0.5, metallic=0.0, specular=0.5):
mat = bpy.data.materials.new(name)
mat.use_nodes = True
bsdf = mat.node_tree.nodes.get("Principled BSDF")
bsdf.inputs["Base Color"].default_value = (color[0], color[1], color[2], 1.0)
bsdf.inputs["Roughness"].default_value = roughness
bsdf.inputs["Metallic"].default_value = metallic
if "Specular" in bsdf.inputs:
bsdf.inputs["Specular"].default_value = specular
return mat
def assign(obj, mat):
obj.data.materials.clear()
obj.data.materials.append(mat)
return obj
def remove_top_face(obj):
"""Delete the up-facing cap of a primitive so it becomes an open shell."""
me = obj.data
bm = bmesh.new()
bm.from_mesh(me)
doomed = [f for f in bm.faces
if f.normal.z > 0.85 and f.calc_center_median().z > 0.0]
bmesh.ops.delete(bm, geom=doomed, context='FACES')
bm.to_mesh(me)
bm.free()
me.update()
def add_cube(name, size, location, rotation=(0, 0, 0), scale=(1, 1, 1), mat=None):
bpy.ops.mesh.primitive_cube_add(size=size, location=location,
rotation=rotation)
obj = bpy.context.active_object
obj.name = name
obj.scale = scale
bpy.ops.object.transform_apply(location=False, rotation=False, scale=True)
if mat:
assign(obj, mat)
return obj
def add_cylinder(name, radius, depth, location, rotation=(0, 0, 0),
scale=(1, 1, 1), vertices=48, mat=None):
bpy.ops.mesh.primitive_cylinder_add(radius=radius, depth=depth,
location=location, rotation=rotation,
vertices=vertices)
obj = bpy.context.active_object
obj.name = name
obj.scale = scale
bpy.ops.object.transform_apply(location=False, rotation=False, scale=True)
if mat:
assign(obj, mat)
return obj
def add_cone(name, r1, r2, depth, location, rotation=(0, 0, 0),
scale=(1, 1, 1), vertices=48, mat=None):
bpy.ops.mesh.primitive_cone_add(radius1=r1, radius2=r2, depth=depth,
location=location, rotation=rotation,
vertices=vertices)
obj = bpy.context.active_object
obj.name = name
obj.scale = scale
bpy.ops.object.transform_apply(location=False, rotation=False, scale=True)
if mat:
assign(obj, mat)
return obj
def add_sphere(name, radius, location, rotation=(0, 0, 0), scale=(1, 1, 1),
segments=32, rings=16, mat=None):
bpy.ops.mesh.primitive_uv_sphere_add(radius=radius, location=location,
rotation=rotation, segments=segments,
ring_count=rings)
obj = bpy.context.active_object
obj.name = name
obj.scale = scale
bpy.ops.object.transform_apply(location=False, rotation=False, scale=True)
if mat:
assign(obj, mat)
return obj
def add_torus(name, major, minor, location, rotation=(0, 0, 0),
scale=(1, 1, 1), mat=None):
bpy.ops.mesh.primitive_torus_add(major_radius=major, minor_radius=minor,
location=location, rotation=rotation,
major_segments=48, minor_segments=16)
obj = bpy.context.active_object
obj.name = name
obj.scale = scale
bpy.ops.object.transform_apply(location=False, rotation=False, scale=True)
if mat:
assign(obj, mat)
return obj
# ----------------------------------------------------------------------------
# Scene setup
# ----------------------------------------------------------------------------
clear_scene()
# Materials
MAT_TABLE = make_material("Table", (0.16, 0.075, 0.030), roughness=0.45)
MAT_PORCELAIN = make_material("Porcelain", (0.90, 0.89, 0.85), roughness=0.18,
specular=0.65)
MAT_COFFEE = make_material("Espresso", (0.030, 0.012, 0.005), roughness=0.06,
specular=0.9)
MAT_CREMA = make_material("Crema", (0.34, 0.16, 0.055), roughness=0.45)
MAT_METAL = make_material("Silver", (0.80, 0.81, 0.84), roughness=0.25,
metallic=0.9)
MAT_SUGAR = make_material("Sugar", (0.90, 0.89, 0.86), roughness=0.4,
specular=0.3)
MAT_CROISSANT = make_material("Croissant", (0.34, 0.15, 0.032), roughness=0.62)
MAT_CROISSANT2 = make_material("CroissantDark", (0.22, 0.085, 0.018),
roughness=0.68)
MAT_LEG = make_material("TableLeg", (0.10, 0.10, 0.11), roughness=0.4,
metallic=0.7)
# -- Table ------------------------------------------------------------------
add_cylinder("TableTop", 0.30, 0.030, (0.0, 0.0, -0.015), vertices=96,
mat=MAT_TABLE)
add_torus("TableEdge", 0.30, 0.010, (0.0, 0.0, -0.015), mat=MAT_TABLE)
add_cylinder("TableLeg", 0.028, 0.42, (0.0, 0.0, -0.24), vertices=32,
mat=MAT_LEG)
add_cylinder("TableFoot", 0.11, 0.018, (0.0, 0.0, -0.451), vertices=48,
mat=MAT_LEG)
# -- Saucer -----------------------------------------------------------------
SAUCER_Z = 0.012
add_cylinder("SaucerBase", 0.082, 0.008, (0.0, 0.0, SAUCER_Z),
vertices=64, mat=MAT_PORCELAIN)
add_cone("SaucerRim", 0.082, 0.058, 0.014, (0.0, 0.0, SAUCER_Z + 0.011),
vertices=64, mat=MAT_PORCELAIN)
add_torus("SaucerLip", 0.080, 0.006, (0.0, 0.0, SAUCER_Z + 0.017),
scale=(1.0, 1.0, 0.6), mat=MAT_PORCELAIN)
add_cylinder("SaucerWell", 0.055, 0.004, (0.0, 0.0, SAUCER_Z + 0.006),
vertices=48, mat=MAT_PORCELAIN)
# -- Espresso cup -----------------------------------------------------------
CUP_BASE = SAUCER_Z + 0.020
CUP_R = 0.034
CUP_H = 0.062
CUP_CZ = CUP_BASE + CUP_H / 2.0
cup = add_cone("CupBody", CUP_R * 0.80, CUP_R, CUP_H, (0.0, 0.0, CUP_CZ),
vertices=64, mat=MAT_PORCELAIN)
remove_top_face(cup)
# rim lip
add_torus("CupRim", CUP_R, 0.0035, (0.0, 0.0, CUP_BASE + CUP_H),
mat=MAT_PORCELAIN)
# espresso surface just below the rim
add_cylinder("Espresso", CUP_R * 0.90, 0.005,
(0.0, 0.0, CUP_BASE + CUP_H - 0.010), vertices=48, mat=MAT_COFFEE)
add_cylinder("Crema", CUP_R * 0.62, 0.004,
(0.0, 0.0, CUP_BASE + CUP_H - 0.008), vertices=48, mat=MAT_CREMA)
# handle
add_torus("CupHandle", 0.019, 0.0048, (CUP_R + 0.005, 0.0, CUP_CZ),
rotation=(math.pi / 2.0, 0.0, 0.0), mat=MAT_PORCELAIN)
# small foot
add_cylinder("CupFoot", CUP_R * 0.78, 0.006, (0.0, 0.0, CUP_BASE),
vertices=48, mat=MAT_PORCELAIN)
# -- Spoon (resting on the saucer, angled) ---------------------------------
SPOON_ANG = math.radians(60.0)
handle_len = 0.075
handle_cx = -0.052
bowl_cx = handle_cx + handle_len / 2.0 + 0.016
sp_x, sp_y = -0.042, -0.026
cos_a, sin_a = math.cos(SPOON_ANG), math.sin(SPOON_ANG)
def rot_pt(lx, ly):
return (sp_x + lx * cos_a - ly * sin_a, sp_y + lx * sin_a + ly * cos_a)
hx, hy = rot_pt(handle_cx, 0.0)
add_cylinder("SpoonHandle", 0.0045, handle_len, (hx, hy, SAUCER_Z + 0.028),
rotation=(math.pi / 2.0, 0.0, SPOON_ANG), vertices=16,
mat=MAT_METAL)
bx, by = rot_pt(bowl_cx, 0.0)
bowl = add_sphere("SpoonBowl", 0.020, (bx, by, SAUCER_Z + 0.026),
scale=(1.0, 0.62, 0.16), segments=32, rings=16,
mat=MAT_METAL)
bowl.rotation_euler = (0.0, 0.0, SPOON_ANG)
nx, ny = rot_pt(handle_cx - handle_len / 2.0 + 0.004, 0.0)
add_sphere("SpoonTip", 0.0055, (nx, ny, SAUCER_Z + 0.028),
scale=(1.0, 1.0, 0.8), mat=MAT_METAL)
# -- Sugar cubes ------------------------------------------------------------
SUG = 0.017
for i, (sx, sy, layers, ang) in enumerate([
(0.140, 0.078, 0.0, 0.12),
(0.140, 0.078, 1.0, 0.55),
(0.113, 0.100, 0.0, -0.35)]):
add_cube("SugarCube_%d" % i, SUG,
(sx, sy, SUG / 2.0 + layers * SUG), rotation=(0, 0, ang),
scale=(1.0, 1.0, 0.86), mat=MAT_SUGAR)
# -- Croissant --------------------------------------------------------------
# A crescent built from many overlapping tapered spheres along a circular arc:
# fat in the middle, pointed at the tips, with a few narrower darker rings
# standing in for the rolled pastry folds.
CX, CY = 0.118, -0.062
R_ARC = 0.058
N = 15
def croissant_pt(i):
t = i / (N - 1.0)
theta = math.radians(200.0 + t * 140.0) # 200 -> 340 deg
taper = 0.06 + 0.94 * math.sin(math.pi * t) ** 1.05
r = 0.0165 * taper
px = CX + R_ARC * math.cos(theta)
py = CY + R_ARC * math.sin(theta)
return t, theta, r, px, py
# smooth body
for i in range(N):
t, theta, r, px, py = croissant_pt(i)
seg = add_sphere("Croissant_%d" % i, r, (px, py, r * 0.70),
scale=(1.18, 1.18, 0.82), segments=24, rings=14,
mat=MAT_CROISSANT)
seg.rotation_euler = (0.0, 0.0, theta + math.pi / 2.0)
# raised segment ridges wrapped around the tube (classic croissant folds)
for i in range(2, N - 1, 2):
t, theta, r, px, py = croissant_pt(i)
phi = theta + math.pi / 2.0
add_torus("CroissantRidge_%d" % i, r * 0.86, 0.0032,
(px, py, r * 0.70), rotation=(math.pi / 2.0, 0.0, phi + math.pi / 2.0),
mat=MAT_CROISSANT2)
# ----------------------------------------------------------------------------
# Camera
# ----------------------------------------------------------------------------
cam_data = bpy.data.cameras.new("Camera")
cam_data.lens = 52.0
cam = bpy.data.objects.new("Camera", cam_data)
bpy.context.scene.collection.objects.link(cam)
cam.location = Vector((0.25, -0.56, 0.44))
target = Vector((0.030, -0.03, 0.045))
direction = target - cam.location
cam.rotation_euler = direction.to_track_quat("-Z", "Y").to_euler()
bpy.context.scene.camera = cam
# ----------------------------------------------------------------------------
# Lighting
# ----------------------------------------------------------------------------
def add_area_light(name, location, energy, size, target_pt, color=(1, 1, 1)):
ld = bpy.data.lights.new(name, "AREA")
ld.energy = energy
ld.size = size
ld.color = color
lo = bpy.data.objects.new(name, ld)
bpy.context.scene.collection.objects.link(lo)
lo.location = location
d = Vector(target_pt) - Vector(location)
lo.rotation_euler = d.to_track_quat("-Z", "Y").to_euler()
return lo
add_area_light("KeyLight", (0.45, -0.40, 0.62), 20.0, 0.5,
(0.06, -0.02, 0.05), color=(1.0, 0.95, 0.88))
add_area_light("FillLight", (-0.55, -0.35, 0.32), 8.0, 0.7,
(0.0, 0.0, 0.04), color=(0.90, 0.94, 1.0))
add_area_light("RimLight", (-0.10, 0.55, 0.45), 12.0, 0.45,
(0.05, 0.0, 0.06), color=(1.0, 0.96, 0.90))
# world ambient
world = bpy.data.worlds.new("World")
bpy.context.scene.world = world
world.use_nodes = True
bg = world.node_tree.nodes.get("Background")
bg.inputs[0].default_value = (0.50, 0.55, 0.63, 1.0)
bg.inputs[1].default_value = 0.09
# tone mapping
bpy.context.scene.view_settings.view_transform = "Filmic"
bpy.context.scene.view_settings.look = "Medium Contrast"
bpy.context.scene.view_settings.exposure = -0.6round 1 of 5
The croissant arrives on the fifth round, scored and tapered at both ends. The spoon is a bowl on the saucer and a separate handle beside it.
modeldeepseek/deepseek-v4.1-flashtaskblender-cafe-table@v2date2026-09-21rounds5 of 8 allowedcost$0.0222thinkingmediumtokens330,613 in, 24,709 out, of which 12,571 reasoningtime12 min 0 sfailurephysical-plausibility
What the harness did to this run. The 12-minute clock ended it before the model finished, so this is where it had got to when time ran out.
All five objectsdecided by looking · Pass if all five can be pointed at in the render as separate objects. One missing, or hidden behind another, fails it.pass
Primitives onlydecided by a number, from the filepass
Spoon reads as a spoondecided by looking · Pass if the spoon is one connected piece with a bowl at one end, wider than the handle, and the handle running from it in a line. Loose parts, or no handle, fail it.fail
Croissant reads as a croissantdecided by looking · Pass if it is a crescent that is thickest in the middle and tapers to both tips, with segments or scoring across it. A smooth curved tube fails it, and so does a segmented one with no taper.pass
Consistent scaledecided by a number, from the filepass
There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.
run 1 · 3r · $0.0163Three rounds before the clock. The spoon does not read as a spoon, and the croissant is a segmented tube that tapers at neither end.
run 3 · 8r · $0.0194Eight rounds, stopped by the round cap rather than the clock. The best croissant on the bench, next to a spoon that does not read as one.same prompt, other modelsall 5 runs on Café table from primitives →
Write a Blender Python script that builds a café table scene: an espresso cup on a saucer, a spoon, sugar cubes and a croissant. Use only primitive meshes (cube, cylinder, cone, sphere, torus).Frozen at v2. This model got this and nothing else.

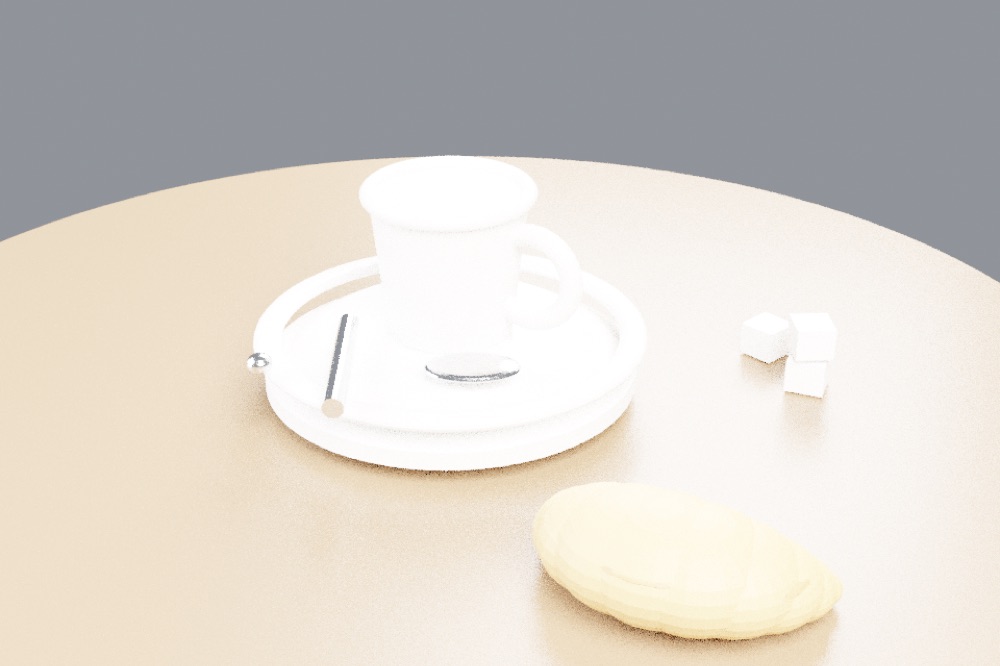

The render, and the script that made it: the objects a person would name unprompted, at sizes a person would accept. A 5 cm spoon and an 11 cm croissant are checkable in the source. How it is scored, and this run's files on GitHub.
