scene.py · 475 lines

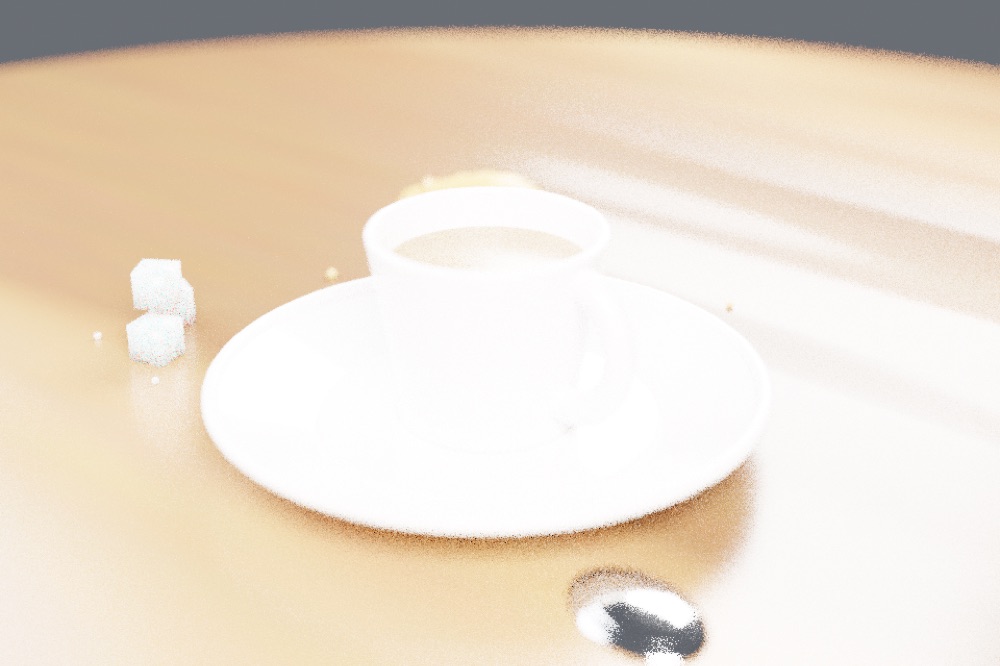

# Cafe table scene: espresso cup on saucer, spoon, sugar cubes, croissant.
# Built only from primitive meshes (cube, cylinder, cone, sphere, torus).
# Meters, real-world scale: table top surface at z = 0.
import math
from math import radians, sin, cos, pi
import bpy
D = bpy.data
# ---------------------------------------------------------------- utilities
def wipe_scene():
for o in list(D.objects):
D.objects.remove(o, do_unlink=True)
for block in (D.meshes, D.materials, D.lights, D.cameras):
for b in list(block):
block.remove(b)
def link(obj):
bpy.context.scene.collection.objects.link(obj)
return obj
def smooth(obj, auto=True, angle=radians(35)):
for p in obj.data.polygons:
p.use_smooth = True
if auto and hasattr(obj.data, "use_auto_smooth"):
obj.data.use_auto_smooth = True
obj.data.auto_smooth_angle = angle
return obj
def setmat(obj, mat):
if mat is not None:
obj.data.materials.clear()
obj.data.materials.append(mat)
return obj
def new_material(name):
m = D.materials.new(name)
m.use_nodes = True
return m
def bsdf_of(m):
for n in m.node_tree.nodes:
if n.type == 'BSDF_PRINCIPLED':
return n
return None
def set_in(node, name, value):
if name in node.inputs:
node.inputs[name].default_value = value
return True
return False
def simple_material(name, color, rough=0.5, metal=0.0, transmission=0.0,
ior=1.45, coat=0.0, subsurface=0.0):
m = new_material(name)
b = bsdf_of(m)
set_in(b, "Base Color", (color[0], color[1], color[2], 1.0))
set_in(b, "Roughness", rough)
set_in(b, "Metallic", metal)
set_in(b, "Transmission Weight", transmission)
set_in(b, "IOR", ior)
set_in(b, "Coat Weight", coat) or set_in(b, "Clearcoat", coat)
set_in(b, "Subsurface Weight", subsurface) or set_in(b, "Subsurface", subsurface)
if subsurface:
set_in(b, "Subsurface Radius", (0.01, 0.01, 0.01))
return m
def join(objs, name):
bpy.ops.object.select_all(action='DESELECT')
for o in objs:
o.select_set(True)
bpy.context.view_layer.objects.active = objs[0]
bpy.ops.object.join()
r = bpy.context.active_object
r.name = name
# bake everything into world space so later moves/rotations behave
bpy.ops.object.transform_apply(location=True, rotation=True, scale=True)
return r
def place(obj, x, y, rot_deg=0.0, z=0.0):
"""Move obj so its bounding-box centre lands on (x, y) after a Z rotation."""
bb = [tuple(c) for c in obj.bound_box]
cx = sum(v[0] for v in bb) / 8.0
cy = sum(v[1] for v in bb) / 8.0
cz = sum(v[2] for v in bb) / 8.0
r = radians(rot_deg)
px = cos(r) * cx - sin(r) * cy
py = sin(r) * cx + cos(r) * cy
obj.rotation_euler = (0, 0, r)
obj.location = (x - px, y - py, z - cz)
return obj
def aim_z(obj, direction, up=(0, 0, 1)):
"""Rotate obj so its local +Z points along `direction`."""
import mathutils
q = mathutils.Vector(direction).to_track_quat('Z', 'Y')
obj.rotation_euler = q.to_euler()
return obj
# ------------------------------------------------------------- primitives
def cube(name, size=1.0, loc=(0, 0, 0), rot=(0, 0, 0), scale=(1, 1, 1), mat=None, smooth_=False):
bpy.ops.mesh.primitive_cube_add(size=size, location=loc, rotation=rot)
o = bpy.context.active_object
o.name = name
o.scale = scale
setmat(o, mat)
if smooth_:
smooth(o, auto=False)
return o
def cylinder(name, r=1.0, d=1.0, loc=(0, 0, 0), rot=(0, 0, 0), scale=(1, 1, 1),
mat=None, verts=64, fill='NGON'):
bpy.ops.mesh.primitive_cylinder_add(vertices=verts, radius=r, depth=d,
location=loc, rotation=rot, end_fill_type=fill)
o = bpy.context.active_object
o.name = name
o.scale = scale
setmat(o, mat)
smooth(o)
return o
def cone(name, r1=1.0, r2=0.0, d=1.0, loc=(0, 0, 0), rot=(0, 0, 0), scale=(1, 1, 1),
mat=None, verts=64, fill='NGON'):
bpy.ops.mesh.primitive_cone_add(vertices=verts, radius1=r1, radius2=r2, depth=d,
location=loc, rotation=rot, end_fill_type=fill)
o = bpy.context.active_object
o.name = name
o.scale = scale
setmat(o, mat)
smooth(o)
return o
def sphere(name, r=1.0, loc=(0, 0, 0), scale=(1, 1, 1), mat=None, seg=32, ring=16):
bpy.ops.mesh.primitive_uv_sphere_add(segments=seg, ring_count=ring, radius=r, location=loc)
o = bpy.context.active_object
o.name = name
o.scale = scale
setmat(o, mat)
smooth(o)
return o
def torus(name, R=1.0, r=0.1, loc=(0, 0, 0), rot=(0, 0, 0), scale=(1, 1, 1),
mat=None, maj=64, mino=24):
bpy.ops.mesh.primitive_torus_add(major_segments=maj, minor_segments=mino,
major_radius=R, minor_radius=r, location=loc,
rotation=rot)
o = bpy.context.active_object
o.name = name
o.scale = scale
setmat(o, mat)
smooth(o, angle=radians(45))
return o
# ---------------------------------------------------------------- materials
def wood_material():
m = new_material("TableWood")
nt = m.node_tree
n, l = nt.nodes, nt.links
b = bsdf_of(m)
tex = n.new("ShaderNodeTexCoord")
mapping = n.new("ShaderNodeMapping")
mapping.inputs["Scale"].default_value = (1.0, 6.0, 6.0)
wave = n.new("ShaderNodeTexWave")
wave.wave_type = 'BANDS'
wave.bands_direction = 'Z'
wave.inputs["Scale"].default_value = 0.55
wave.inputs["Distortion"].default_value = 5.5
wave.inputs["Detail"].default_value = 2.0
wave.inputs["Detail Scale"].default_value = 1.4
noise = n.new("ShaderNodeTexNoise")
noise.inputs["Scale"].default_value = 9.0
noise.inputs["Detail"].default_value = 6.0
ramp = n.new("ShaderNodeValToRGB")
ramp.color_ramp.elements[0].position = 0.25
ramp.color_ramp.elements[0].color = (0.155, 0.062, 0.026, 1)
ramp.color_ramp.elements[1].position = 0.85
ramp.color_ramp.elements[1].color = (0.335, 0.150, 0.062, 1)
mix = n.new("ShaderNodeMixRGB")
mix.blend_type = 'MULTIPLY'
mix.inputs["Fac"].default_value = 0.35
l.new(tex.outputs["Object"], mapping.inputs["Vector"])
l.new(mapping.outputs["Vector"], wave.inputs["Vector"])
l.new(mapping.outputs["Vector"], noise.inputs["Vector"])
l.new(wave.outputs["Color"], ramp.inputs["Fac"])
l.new(ramp.outputs["Color"], mix.inputs["Color1"])
l.new(noise.outputs["Color"], mix.inputs["Color2"])
l.new(mix.outputs["Color"], b.inputs["Base Color"])
set_in(b, "Roughness", 0.28)
bump = n.new("ShaderNodeBump")
bump.inputs["Strength"].default_value = 0.06
l.new(wave.outputs["Color"], bump.inputs["Height"])
l.new(bump.outputs["Normal"], b.inputs["Normal"])
return m
def dough_material():
m = new_material("CroissantDough")
nt = m.node_tree
n, l = nt.nodes, nt.links
b = bsdf_of(m)
tex = n.new("ShaderNodeTexCoord")
noise = n.new("ShaderNodeTexNoise")
noise.inputs["Scale"].default_value = 26.0
noise.inputs["Detail"].default_value = 8.0
noise.inputs["Roughness"].default_value = 0.62
ramp = n.new("ShaderNodeValToRGB")
cr = ramp.color_ramp
cr.elements[0].position = 0.30
cr.elements[0].color = (0.30, 0.115, 0.026, 1)
cr.elements[1].position = 0.62
cr.elements[1].color = (0.63, 0.30, 0.075, 1)
e = cr.elements.new(0.85)
e.color = (0.80, 0.47, 0.16, 1)
l.new(tex.outputs["Object"], noise.inputs["Vector"])
l.new(noise.outputs["Color"], ramp.inputs["Fac"])
l.new(ramp.outputs["Color"], b.inputs["Base Color"])
set_in(b, "Roughness", 0.42)
set_in(b, "Specular IOR Level", 0.35) or set_in(b, "Specular", 0.35)
set_in(b, "Sheen Weight", 0.25) or set_in(b, "Sheen", 0.25)
bump = n.new("ShaderNodeBump")
bump.inputs["Strength"].default_value = 0.35
bump.inputs["Distance"].default_value = 0.0012
l.new(noise.outputs["Color"], bump.inputs["Height"])
l.new(bump.outputs["Normal"], b.inputs["Normal"])
return m
def sugar_material():
m = new_material("Sugar")
b = bsdf_of(m)
set_in(b, "Base Color", (0.86, 0.86, 0.84, 1))
set_in(b, "Roughness", 0.42)
set_in(b, "Transmission Weight", 0.12) or set_in(b, "Transmission", 0.12)
set_in(b, "IOR", 1.55)
return m
# -------------------------------------------------------------------- build
wipe_scene()
scene = bpy.context.scene
scene.unit_settings.system = 'METRIC'
porcelain = simple_material("Porcelain", (0.78, 0.775, 0.765), rough=0.06, coat=0.35, ior=1.5)
porcelain_warm = simple_material("PorcelainWarm", (0.76, 0.755, 0.74), rough=0.08, coat=0.3)
crema = simple_material("EspressoCrema", (0.28, 0.135, 0.045), rough=0.22, coat=0.15)
steel = simple_material("Steel", (0.72, 0.73, 0.75), rough=0.11, metal=1.0)
wood = wood_material()
dough = dough_material()
sugar = sugar_material()
crumb_mat = simple_material("Crumb", (0.55, 0.30, 0.10), rough=0.6)
dark = simple_material("Dark", (0.02, 0.02, 0.02), rough=0.6)
# ---- table (round cafe table top, its edge stays out of frame)
table_top = cylinder("TableTop", r=0.45, d=0.035, loc=(0, 0, -0.0175), mat=wood, verts=128)
torus("TableEdge", R=0.4495, r=0.004, loc=(0, 0, -0.004), mat=wood)
cylinder("TablePedestal", r=0.045, d=0.70, loc=(0, 0, -0.385), mat=dark, verts=48)
cylinder("TableFoot", r=0.17, d=0.02, loc=(0, 0, -0.735), mat=dark, verts=64)
# room beyond the table edge (visible at the top of the frame)
cube("Floor", size=1.0, loc=(0, 0, -0.755), scale=(4, 4, 0.05),
mat=simple_material("Floor", (0.13, 0.12, 0.115), rough=0.7))
cube("Wall", size=1.0, loc=(0, 0.95, 0.55), scale=(4, 0.06, 1.9),
mat=simple_material("Wall", (0.34, 0.285, 0.235), rough=0.85))
cube("WallTrim", size=1.0, loc=(0, 0.93, -0.10), scale=(4, 0.05, 0.16),
mat=simple_material("Trim", (0.16, 0.12, 0.085), rough=0.6))
# ---- saucer
saucer_top = 0.0065 # z of the well floor the cup stands on
parts = []
parts.append(cylinder("SaucerFoot", r=0.0455, d=0.0045, loc=(0, 0, 0.00225),
mat=porcelain_warm))
parts.append(cylinder("SaucerWell", r=0.047, d=0.0025, loc=(0, 0, saucer_top - 0.00125),
mat=porcelain_warm))
parts.append(cone("SaucerRim", r1=0.045, r2=0.0755, d=0.0125,
loc=(0, 0, saucer_top + 0.0035), mat=porcelain_warm,
fill='NOTHING', verts=96))
parts.append(torus("SaucerLip", R=0.0755, r=0.0022, loc=(0, 0, saucer_top + 0.0097),
mat=porcelain_warm))
saucer = join(parts, "Saucer")
smooth(saucer)
def move(obj, dx, dy, dz=0.0):
obj.location.x += dx
obj.location.y += dy
obj.location.z += dz
return obj
# ---- espresso cup (hollow shell: outer wall, inner wall, floor, rim torus)
z0 = saucer_top + 0.0005
H = 0.052
Ro_b, Ro_t = 0.0235, 0.0325 # outer radius bottom / top
Ri_b, Ri_t = 0.0205, 0.0295 # inner radius bottom / top
cparts = []
cparts.append(cone("CupOuter", r1=Ro_b, r2=Ro_t, d=H, loc=(0, 0, z0 + H / 2),
mat=porcelain, fill='NOTHING', verts=96))
cparts.append(cone("CupInner", r1=Ri_b, r2=Ri_t, d=H - 0.005,
loc=(0, 0, z0 + 0.005 + (H - 0.005) / 2),
mat=porcelain, fill='NOTHING', verts=96))
cparts.append(cone("CupFloor", r1=Ri_b, r2=Ri_b - 0.001, d=0.005,
loc=(0, 0, z0 + 0.0025), mat=porcelain, verts=96))
cparts.append(cylinder("CupBase", r=Ro_b + 0.0015, d=0.004, loc=(0, 0, z0 + 0.002),
mat=porcelain, verts=96))
rim_mid = 0.5 * (Ro_t + Ri_t)
rim_minor = 0.5 * (Ro_t - Ri_t)
cparts.append(torus("CupRim", R=rim_mid, r=rim_minor, loc=(0, 0, z0 + H), mat=porcelain))
# handle: torus ring in the XZ plane, biting into the outer wall
hx = Ro_t - 0.005
cparts.append(torus("CupHandle", R=0.0165, r=0.0046, loc=(hx, 0, z0 + 0.027),
rot=(radians(90), 0, 0), scale=(1.0, 1.18, 1.0)))
cup = join(cparts, "EspressoCup")
smooth(cup)
# ---- group placement on the table
CUP_POS = (0.030, -0.028)
move(saucer, *CUP_POS)
move(cup, *CUP_POS)
# espresso surface, a little below the rim
z_liq = z0 + H - 0.010
slope = (Ri_t - Ri_b) / (H - 0.005)
r_liq = Ri_b + slope * (z_liq - (z0 + 0.005)) + 0.0008
liquid = cylinder("Espresso", r=r_liq, d=0.0025, loc=(0, 0, z_liq), mat=crema, verts=96)
move(liquid, *CUP_POS)
# ---- spoon, lying on the table to the right of the saucer
sp_parts = []
sp_parts.append(sphere("SpoonBowl", r=1.0, loc=(0.0, 0, 0.0046),
scale=(0.0210, 0.0142, 0.0040), mat=steel, seg=32, ring=16))
sp_parts.append(cube("SpoonNeck", size=1.0, loc=(0.030, 0, 0.0024),
scale=(0.022, 0.0055, 0.0011), mat=steel))
sp_parts.append(cube("SpoonHandle", size=1.0, loc=(0.085, 0, 0.0022),
scale=(0.055, 0.0068, 0.0011), mat=steel))
sp_parts.append(sphere("SpoonTip", r=1.0, loc=(0.140, 0, 0.0022),
scale=(0.0075, 0.0055, 0.0012), mat=steel))
spoon = join(sp_parts, "Spoon")
place(spoon, 0.135, -0.030, rot_deg=-52)
smooth(spoon)
# ---- sugar cubes, left-front of the saucer
cube_s = 0.0135
sugar_positions = [(-0.098, -0.104, 0, 14),
(-0.121, -0.088, 0, -22),
(-0.110, -0.099, 1, 34)]
for i, (sx, sy, lvl, rot) in enumerate(sugar_positions):
z = cube_s / 2 + lvl * cube_s
c = cube("SugarCube%d" % i, size=cube_s, loc=(sx, sy, z + (0.0008 if lvl else 0.0)),
rot=(0, 0, radians(rot)), mat=sugar)
smooth(c, auto=False)
# a few sugar grains
for i, (gx, gy) in enumerate([(-0.082, -0.118), (-0.134, -0.076), (-0.090, -0.075),
(-0.128, -0.112)]):
sphere("SugarGrain%d" % i, r=0.0011, loc=(gx, gy, 0.0009), mat=sugar, seg=12, ring=8)
# ---- croissant: chain of squashed spheres along an arc + two cone tips
arc_R = 0.042
a0, a1 = 208, 332
prof = [0.30, 0.52, 0.72, 0.88, 1.00, 1.00, 0.88, 0.72, 0.52, 0.30]
r_max = 0.0185
cp = []
n = len(prof)
for i, f in enumerate(prof):
t = a0 + (a1 - a0) * (i / (n - 1))
th = radians(t)
r = r_max * (0.42 + 0.58 * f)
x = arc_R * cos(th)
y = arc_R * sin(th)
squash = 0.70 + 0.10 * f
cp.append(sphere("CroissantSeg%d" % i, r=r, loc=(x, y, r * squash * 0.98),
scale=(1.0, 1.0, squash), mat=dough, seg=28, ring=16))
for side, i in ((1, 0), (-1, n - 1)):
t = a0 if side == 1 else a1
th = radians(t)
tang = (-sin(th), cos(th)) # direction of increasing angle
out = (tang[0] * side, tang[1] * side) # outward along the crescent
base = (arc_R * cos(th), arc_R * sin(th))
r_end = r_max * (0.42 + 0.58 * prof[i])
L = 0.024
c = cone("CroissantTip%d" % i, r1=r_end * 0.95, r2=0.0014, d=L,
loc=(0, 0, 0), mat=dough, verts=32)
aim_z(c, (out[0], out[1], -0.35))
c.location = (base[0] + out[0] * (L * 0.42),
base[1] + out[1] * (L * 0.42), r_end * 0.72)
cp.append(c)
croissant = join(cp, "Croissant")
place(croissant, -0.120, 0.062, rot_deg=196)
smooth(croissant)
# crumbs
for i, (cx, cy, cr) in enumerate([(-0.062, 0.014, 0.0022), (-0.042, 0.042, 0.0016),
(-0.075, -0.006, 0.0019), (-0.028, 0.068, 0.0013),
(-0.150, 0.014, 0.0017)]):
sphere("Crumb%d" % i, r=cr, loc=(cx, cy, cr * 0.7), mat=crumb_mat, seg=14, ring=10)
# --------------------------------------------------------------- camera etc.
cam_data = D.cameras.new("Camera")
cam_data.lens = 50
cam_data.sensor_width = 36
cam_data.dof.use_dof = True
cam_data.dof.focus_distance = 0.50
cam_data.dof.aperture_fstop = 8.0
cam = bpy.data.objects.new("Camera", cam_data)
link(cam)
scene.camera = cam
import mathutils
target = mathutils.Vector((-0.005, 0.005, 0.026))
cam.location = (0.275, -0.360, 0.235)
cam.rotation_euler = (target - cam.location).to_track_quat('-Z', 'Y').to_euler()
world = D.worlds.new("World") if not D.worlds else D.worlds[0]
world.use_nodes = True
bg = world.node_tree.nodes.get("Background")
bg.inputs[0].default_value = (0.28, 0.30, 0.34, 1)
bg.inputs[1].default_value = 0.12
def add_light(name, kind, loc, energy, color=(1, 1, 1), size=0.3, target_pt=(0, 0, 0),
rotation=None):
ld = D.lights.new(name, kind)
ld.energy = energy
ld.color = color
if kind == 'AREA':
ld.shape = 'RECTANGLE'
ld.size = size
ld.size_y = size * 0.7
elif kind == 'SUN':
ld.angle = radians(3)
o = bpy.data.objects.new(name, ld)
link(o)
o.location = loc
if rotation is not None:
o.rotation_euler = rotation
else:
d = mathutils.Vector(target_pt) - mathutils.Vector(loc)
o.rotation_euler = d.to_track_quat('-Z', 'Y').to_euler()
return o
add_light("Key", 'AREA', (0.38, -0.34, 0.46), 7.5, (1.0, 0.96, 0.90), size=0.45,
target_pt=(0.0, 0.0, 0.02))
add_light("Fill", 'AREA', (-0.42, -0.15, 0.30), 2.2, (0.90, 0.94, 1.0), size=0.5,
target_pt=(0.0, 0.02, 0.02))
add_light("Rim", 'AREA', (-0.18, 0.45, 0.30), 3.5, (1.0, 0.97, 0.92), size=0.35,
target_pt=(-0.05, 0.05, 0.03))
add_light("Room", 'AREA', (0.05, 0.55, 0.45), 4.0, (1.0, 0.93, 0.85), size=0.6,
target_pt=(0.0, 0.6, 0.2))
scene.render.engine = 'CYCLES'
scene.cycles.device = 'CPU'
try:
scene.view_settings.view_transform = 'Filmic'
scene.view_settings.look = 'Medium High Contrast'
except Exception as ex:
print("view transform:", ex)
scene.view_settings.exposure = 0.0round 1 of 3
The spoon is hidden behind the saucer, so it cannot be judged. The croissant is fine.
modelqwen/qwen3.8-flashtaskblender-cafe-table@v2date2026-09-21rounds3 of 8 allowedcost$0.0293thinkingmediumtokens330,816 in, 33,565 out, of which 20,770 reasoningtime12 min 0 s
What the harness did to this run. The 12-minute clock ended it before the model finished, so this is where it had got to when time ran out.
All five objectsdecided by looking · Pass if all five can be pointed at in the render as separate objects. One missing, or hidden behind another, fails it.pass
Primitives onlydecided by a number, from the filepass
Spoon reads as a spoondecided by looking · Pass if the spoon is one connected piece with a bowl at one end, wider than the handle, and the handle running from it in a line. Loose parts, or no handle, fail it.n/d
Croissant reads as a croissantdecided by looking · Pass if it is a crescent that is thickest in the middle and tapers to both tips, with segments or scoring across it. A smooth curved tube fails it, and so does a segmented one with no taper.pass
Consistent scaledecided by a number, from the filepass
There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.
Write a Blender Python script that builds a café table scene: an espresso cup on a saucer, a spoon, sugar cubes and a croissant. Use only primitive meshes (cube, cylinder, cone, sphere, torus).Frozen at v2. This model got this and nothing else.
The render, and the script that made it: the objects a person would name unprompted, at sizes a person would accept. A 5 cm spoon and an 11 cm croissant are checkable in the source. How it is scored, and this run's files on GitHub.
