press.svg · 163 lines
<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 900 1240" font-family="'Avenir Next','Segoe UI',Helvetica,Arial,sans-serif">
<defs>
<linearGradient id="steelV" x1="0" y1="0" x2="1" y2="0">
<stop offset="0" stop-color="#c9d0d7"/>
<stop offset="0.25" stop-color="#f4f6f8"/>
<stop offset="0.6" stop-color="#aeb7c0"/>
<stop offset="1" stop-color="#8e98a2"/>
</linearGradient>
<linearGradient id="topFace" x1="0" y1="0" x2="1" y2="1">
<stop offset="0" stop-color="#f4f6f8"/>
<stop offset="0.55" stop-color="#d5dade"/>
<stop offset="1" stop-color="#b3bcc5"/>
</linearGradient>
<radialGradient id="knobGrad" cx="0.35" cy="0.3" r="0.95">
<stop offset="0" stop-color="#7c838b"/>
<stop offset="0.45" stop-color="#4a5057"/>
<stop offset="1" stop-color="#1f2327"/>
</radialGradient>
<pattern id="meshPat" width="7" height="7" patternUnits="userSpaceOnUse">
<rect width="7" height="7" fill="#e8ebee"/>
<path d="M0 7 L7 0 M0 0 L7 7" stroke="#8a939d" stroke-width="1" fill="none"/>
</pattern>
<pattern id="grid" width="36" height="36" patternUnits="userSpaceOnUse">
<path d="M36 0 H0 V36" fill="none" stroke="#ece4d6" stroke-width="1"/>
</pattern>
<clipPath id="plateClip"><ellipse cx="450" cy="570" rx="130" ry="36"/></clipPath>
</defs>
<!-- background -->
<rect width="900" height="1240" fill="#f7f3ec"/>
<rect width="900" height="1240" fill="url(#grid)" opacity="0.5"/>
<!-- title block -->

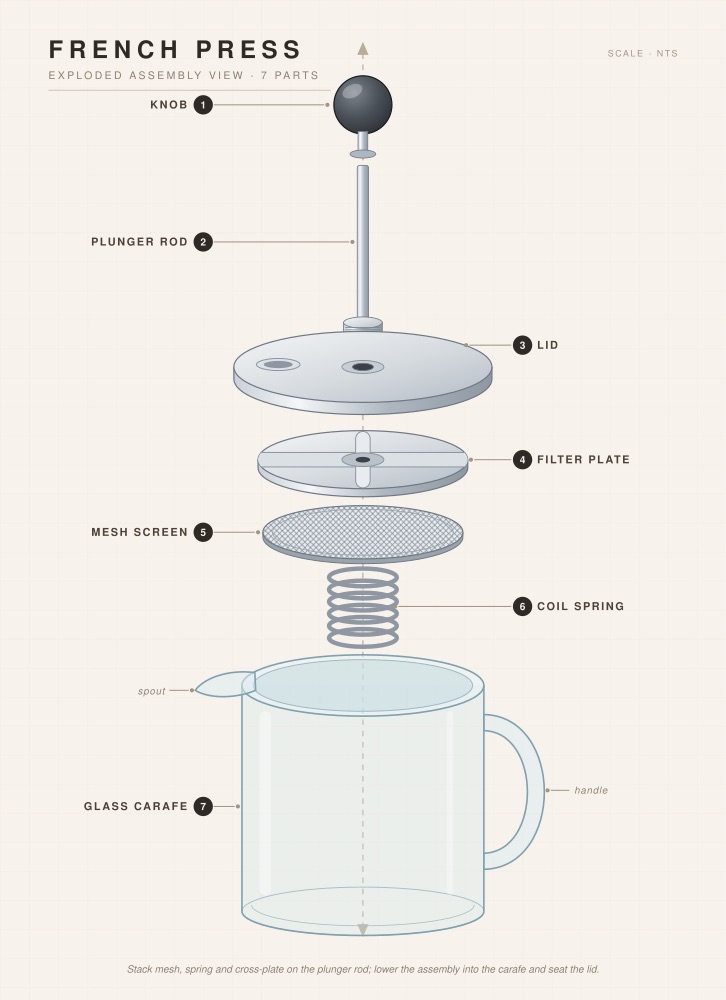

<text x="60" y="72" font-size="30" font-weight="700" letter-spacing="7" fill="#2f2a26">FRENCH PRESS</text>
<text x="60" y="98" font-size="13" letter-spacing="3" fill="#8a7f6f">EXPLODED ASSEMBLY VIEW · 7 PARTS</text>
<line x1="60" y1="112" x2="410" y2="112" stroke="#d8cdbb" stroke-width="1.5"/>
<text x="840" y="70" font-size="11" letter-spacing="2" fill="#a39684" text-anchor="end">SCALE · NTS</text>
<!-- assembly axis -->
<line x1="450" y1="66" x2="450" y2="1148" stroke="#b9ac97" stroke-width="1.5" stroke-dasharray="7 7"/>
<polygon points="450,52 443,68 457,68" fill="#b9ac97"/>
<polygon points="450,1162 443,1146 457,1146" fill="#b9ac97"/>
<!-- 1. knob -->
<circle cx="450" cy="130" r="36" fill="url(#knobGrad)" stroke="#171a1d" stroke-width="1.5"/>
<ellipse cx="436" cy="114" rx="11" ry="6.5" fill="#ffffff" opacity="0.22" transform="rotate(-30 436 114)"/>
<rect x="444" y="163" width="12" height="27" fill="url(#steelV)" stroke="#6f7883" stroke-width="1"/>
<ellipse cx="450" cy="191" rx="16" ry="5" fill="#aeb7c0" stroke="#6f7883" stroke-width="1"/>
<!-- 2. plunger rod -->
<rect x="443" y="205" width="14" height="181" rx="3" fill="url(#steelV)" stroke="#6f7883" stroke-width="1"/>
<path d="M443 370 H457 M443 374 H457 M443 378 H457 M443 382 H457" stroke="#7d8792" stroke-width="1"/>
<!-- 3. lid -->
<path d="M290 455 L290 470 A160 44 0 0 0 610 470 L610 455" fill="url(#steelV)" stroke="#6f7883" stroke-width="1.5"/>
<ellipse cx="450" cy="455" rx="160" ry="44" fill="url(#topFace)" stroke="#6f7883" stroke-width="1.5"/>
<ellipse cx="345" cy="452" rx="27" ry="7.5" fill="#dde2e7" stroke="#8a939d" stroke-width="1.2"/>
<ellipse cx="345" cy="452" rx="18" ry="4.5" fill="#8f98a2"/>
<ellipse cx="450" cy="455" rx="26" ry="8" fill="#c6cdd4" stroke="#8a939d" stroke-width="1.2"/>
<ellipse cx="450" cy="455" rx="13" ry="4.5" fill="#3c4147" stroke="#6f7883" stroke-width="1"/>
<!-- 4. filter cross-plate -->
<path d="M320 570 L320 580 A130 36 0 0 0 580 580 L580 570" fill="url(#steelV)" stroke="#6f7883" stroke-width="1.5"/>
<ellipse cx="450" cy="570" rx="130" ry="36" fill="url(#topFace)" stroke="#6f7883" stroke-width="1.5"/>
<path d="M351 553 Q383 540 423 541 L423 555 Z M477 541 Q517 540 549 553 L477 555 Z M351 586 L423 583 V598 Q383 598 351 586 M477 583 L549 586 Q517 598 477 598 Z" fill="#f7f3ec" stroke="#8a939d" stroke-width="1"/>
<g clip-path="url(#plateClip)">
<rect x="316" y="561" width="268" height="18" rx="9" fill="#dbe0e5" stroke="#8a939d" stroke-width="1.2"/>
<rect x="441" y="535" width="18" height="70" rx="9" fill="#e8ecef" stroke="#8a939d" stroke-width="1.2"/>
</g>
<ellipse cx="450" cy="570" rx="26" ry="8.5" fill="#b9c1c9" stroke="#8a939d" stroke-width="1.2"/>
<ellipse cx="450" cy="570" rx="9" ry="3.5" fill="#3c4147"/>
<!-- 5. mesh screen -->
<path d="M326 660 L326 666 A124 33 0 0 0 574 666 L574 660" fill="#9aa3ac" stroke="#6f7883" stroke-width="1.2"/>
<ellipse cx="450" cy="660" rx="124" ry="33" fill="url(#meshPat)" stroke="#6f7883" stroke-width="1.5"/>
<ellipse cx="450" cy="660" rx="112" ry="28.5" fill="none" stroke="#9aa3ac" stroke-width="1"/>
<ellipse cx="450" cy="660" rx="12" ry="4" fill="#f7f3ec" stroke="#6f7883" stroke-width="2"/>
<!-- 6. spring plate: radial supports and peripheral sealing coil -->
<path d="M320 752 L441 744 L450 720 L459 744 L580 752 L459 760 L450 784 L441 760 Z" fill="url(#topFace)" stroke="#6f7883" stroke-width="1.3"/>
<ellipse cx="450" cy="752" rx="128" ry="34" fill="none" stroke="#6f7883" stroke-width="10"/>
<ellipse cx="450" cy="752" rx="128" ry="34" fill="none" stroke="#e0e5e8" stroke-width="9" stroke-dasharray="2 4"/>
<ellipse cx="450" cy="752" rx="20" ry="7" fill="#b9c1c9" stroke="#6f7883"/>
<ellipse cx="450" cy="752" rx="8" ry="3" fill="#3c4147"/>
<!-- 7. glass carafe -->
<path d="M300 850 L300 1130 A150 30 0 0 0 600 1130 L600 850" fill="#cfe3ea" opacity="0.3"/>
<ellipse cx="450" cy="1130" rx="150" ry="30" fill="none" stroke="#a8bfca" stroke-width="1.2"/>
<path d="M312 1122 A138 26 0 0 0 588 1122" fill="none" stroke="#a8bfca" stroke-width="1"/>
<line x1="300" y1="850" x2="300" y2="1130" stroke="#7fa0ad" stroke-width="2"/>
<line x1="600" y1="850" x2="600" y2="1130" stroke="#7fa0ad" stroke-width="2"/>
<path d="M300 1130 A150 30 0 0 0 600 1130" fill="none" stroke="#7fa0ad" stroke-width="2"/>
<!-- open rim with an integrated pouring lip -->
<path d="M326 829 C380 800 550 809 590 837 C651 881 427 909 326 871 Q289 862 266 850 Q289 837 326 829 Z" fill="#e6f1f4" fill-opacity="0.5" stroke="#7fa0ad" stroke-width="2"/>
<path d="M334 835 C390 809 543 817 579 840 C630 876 429 899 334 865 Q307 857 286 850 Q308 841 334 835 Z" fill="#bcd5dc" fill-opacity="0.35" stroke="#9db8c2" stroke-width="1.2"/>
<!-- handle -->
<path d="M600 886 C 700 888, 700 1076, 600 1078 L600 1058 C 672 1056, 672 908, 600 906 Z" fill="#dcebf0" fill-opacity="0.5" stroke="#7fa0ad" stroke-width="2" stroke-linejoin="round"/>
<!-- glass highlights -->
<rect x="322" y="882" width="14" height="228" rx="7" fill="#ffffff" opacity="0.4"/>
<rect x="554" y="882" width="8" height="228" rx="4" fill="#ffffff" opacity="0.3"/>
<!-- callouts -->
<g font-size="13.5" font-weight="600" letter-spacing="2" fill="#4a4238">
<g stroke="#a39684" stroke-width="1.3">
<line x1="265" y1="130" x2="402" y2="130"/>
<line x1="265" y1="300" x2="433" y2="300"/>
<line x1="265" y1="660" x2="316" y2="660"/>
<line x1="265" y1="1000" x2="291" y2="1000"/>
<line x1="634" y1="428" x2="582" y2="428"/>
<line x1="634" y1="570" x2="588" y2="570"/>
<line x1="634" y1="752" x2="590" y2="752"/>
<line x1="210" y1="850" x2="258" y2="850"/>
<line x1="706" y1="980" x2="683" y2="980"/>
</g>
<g fill="#a39684">
<circle cx="406" cy="130" r="2.6"/>
<circle cx="437" cy="300" r="2.6"/>
<circle cx="320" cy="660" r="2.6"/>
<circle cx="295" cy="1000" r="2.6"/>
<circle cx="578" cy="428" r="2.6"/>
<circle cx="584" cy="570" r="2.6"/>
<circle cx="586" cy="752" r="2.6"/>
<circle cx="262" cy="850" r="2.6"/>
<circle cx="679" cy="980" r="2.6"/>
</g>
<g text-anchor="end">
<text x="232" y="134.5">KNOB</text>
<text x="232" y="304.5">PLUNGER ROD</text>
<text x="232" y="664.5">MESH SCREEN</text>
<text x="232" y="1004.5">GLASS CARAFE</text>
<text x="204" y="861" font-size="12" font-style="italic" font-weight="400" letter-spacing="1" fill="#8a7f6f">spout</text>
</g>
<g text-anchor="start">
<text x="666" y="432.5">LID</text>
<text x="666" y="574.5">CROSS-PLATE</text>
<text x="666" y="756.5">SPRING PLATE</text>
<text x="666" y="777" font-size="11" font-weight="400" letter-spacing="0.5" fill="#8a7f6f">Peripheral sealing coil</text>
<text x="712" y="984" font-size="12" font-style="italic" font-weight="400" letter-spacing="1" fill="#8a7f6f">handle</text>
</g>
<g fill="#2f2a26">
<circle cx="252" cy="130" r="12"/>
<circle cx="252" cy="300" r="12"/>
<circle cx="252" cy="660" r="12"/>
<circle cx="252" cy="1000" r="12"/>
<circle cx="648" cy="428" r="12"/>
<circle cx="648" cy="570" r="12"/>
<circle cx="648" cy="752" r="12"/>
</g>
<g fill="#f7f3ec" font-size="12.5" font-weight="700" text-anchor="middle">
<text x="252" y="134.5">1</text>
<text x="252" y="304.5">2</text>
<text x="252" y="664.5">5</text>
<text x="252" y="1004.5">7</text>
<text x="648" y="432.5">3</text>
<text x="648" y="574.5">4</text>
<text x="648" y="756.5">6</text>
</g>
</g>
<!-- footnote -->
<text x="450" y="1206" font-size="12.5" font-style="italic" fill="#8a7f6f" text-anchor="middle">Filter stack shown separated along the assembly axis. Threaded rod secures the plates and mesh.</text>
</svg>round 1 of 3
Seven parts, one clean axis, filter stack upside down.
modelunbiased/paretotasksvg-french-press@v1date2026-09-18rounds3 of 20 allowedcost$0.2590thinkingmediumtokens56,845 in, 26,164 out, of which 0 reasoningtime2 min 51 sfailurepart-order
What the harness did to this run. It was allowed 20 rounds instead of the usual 8, and did not need them.
All seven partsdecided by looking · Pass if all seven are drawn as separate shapes and each has a label naming it. A part that is only named in a label or a comment, with nothing drawn, fails it.pass
Stack orderdecided by a number, from the filefail
Filter fits the glassdecided by a number, from the filepass
One assembly axisdecided by looking · Pass if one vertical line runs through the middle of every part, and every leader line leaves from the same side. One part pushed off to the side fails it.pass
Labels matchdecided by looking · Pass if following each leader line from its label ends on the part that label names. One label pointing at the wrong part, or at nothing, fails it.pass
same prompt, other modelsall 5 runs on Exploded French press →
Draw an exploded assembly diagram of a French press, as an SVG.Frozen at v1. This model got this and nothing else. The prompt has since moved to v2, on 2026-09-20, so this run is not directly comparable with one made after that date. Both wordings are on the task page.
The standard three-piece plunger, from the top down: spiral (spring) plate, mesh screen, cross-plate. The cross-plate is the bottom piece, because its threaded stem is what the rod screws into. The spiral plate above the mesh is what presses the mesh edge out against the glass. Checked against the WebstaurantStore anatomy diagram, which is drawn exploded and labelled, and against each part's y coordinate in the SVG rather than its comment. Two-piece travel presses exist and stack differently, which is why v2 of the prompt names the design. How it is scored, and this run's files on GitHub.
