TikZ: a three-set coffee Venn diagram, by deepseek-v4.1-flash
deepseek-v4.1-flash · round 3 of 3 · seed 2$0.03SVGPNGPDFvenn.tex
venn.tex · 47 lines
\documentclass[tikz,border=12pt]{standalone}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  \def\r{2.2}
  \coordinate (A) at (0,1.6);        % Has espresso
  \coordinate (B) at (-1.386,-0.8);  % Has milk
  \coordinate (C) at (1.386,-0.8);   % Served cold

  % Circles
  \draw[thick] (A) circle (\r);
  \draw[thick] (B) circle (\r);
  \draw[thick] (C) circle (\r);

  % Set labels
  \node[font=\Large\bfseries] at (0,4.35) {Has espresso};
  \node[font=\Large\bfseries] at (-4.1,-2.6) {Has milk};
  \node[font=\Large\bfseries] at (4.15,-2.6) {Served cold};

  % ---- Drinks in their regions ----
  % Espresso only
  \node[fill=white,inner sep=1.5pt] at (0,2.6) {short black};

  % Milk only
  \node[fill=white,inner sep=1.5pt] at (-2.5,-1.7) {babyccino};

  % Served cold only
  \node[fill=white,inner sep=1.5pt] at (2.5,-1.7) {cold brew};

  % Espresso + milk (not cold)
  \node[fill=white,inner sep=1pt,font=\footnotesize]
        at (-1.25,0.95) {flat white};

  % Espresso + cold (not milk)
  \node[fill=white,inner sep=1pt,font=\footnotesize,align=center]
        at (1.30,0.90) {iced long\\ black};

  % Milk + cold (not espresso)
  \node[fill=white,inner sep=1.5pt] at (0,-1.75) {milkshake};

  % All three
  \node[fill=white,inner sep=1.5pt] at (0,-0.05) {iced latte};

  % Outside all three sets
  \node[fill=white,inner sep=1.5pt] at (0,-3.95) {pour-over};
\end{tikzpicture}
\end{document}

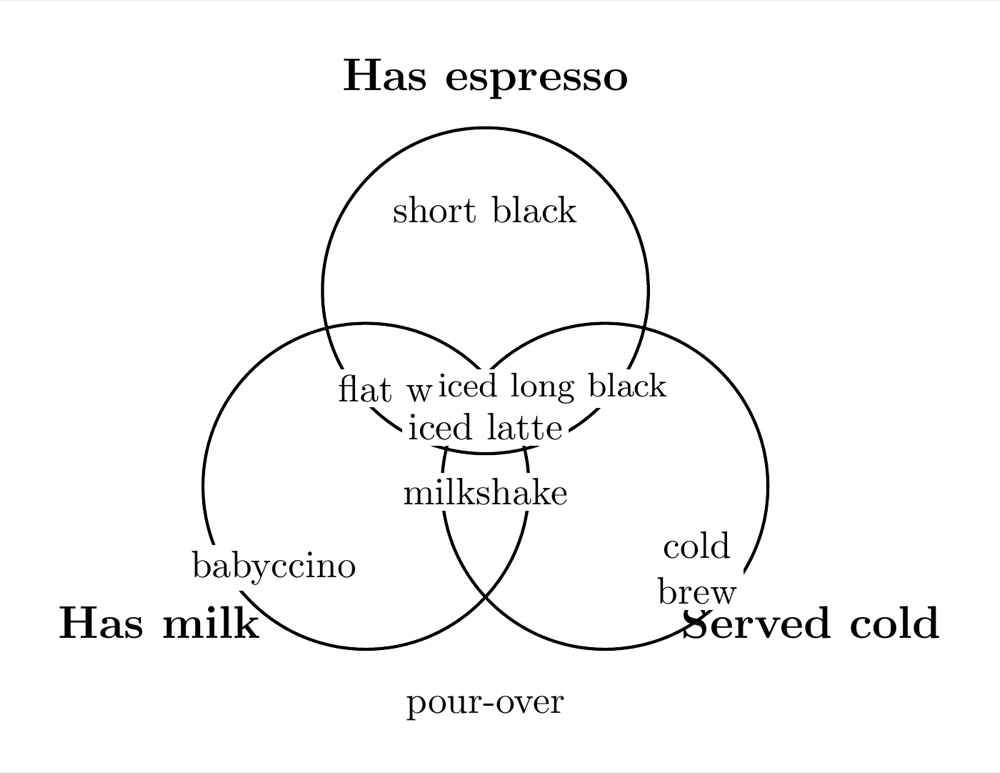

round 1 of 3
A three-set coffee Venn diagram, by DeepSeek 4.1 Flash, the render after round 1

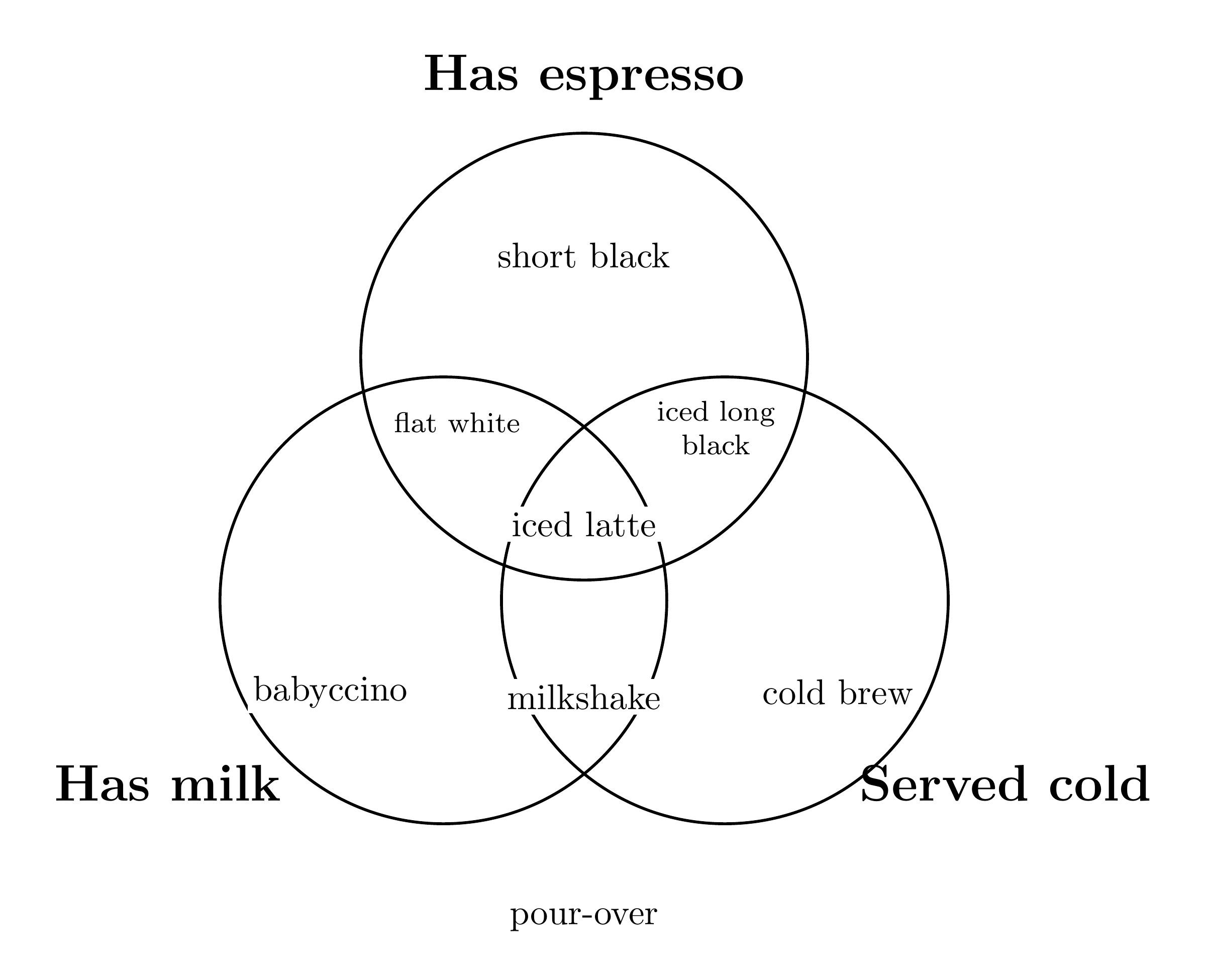

123What the model saw after each round. The picture above is the round that was scored, round 3.
gallery/A three-set coffee Venn diagram/DeepSeek 4.1 Flash, run 2

Two labels across an edge, with white boxes behind them that hide the line they cross.

modeldeepseek/deepseek-v4.1-flashtasktikz-coffee-venn@v1date2026-09-22rounds3 of 8 allowedcost$0.0254thinkingmediumtokens121,391 in, 14,931 out, of which 11,648 reasoningtime3 min 0 sfailurelabelling
Compilesdecided by a number, from the filepass
Seven regions, three namesdecided by a number, from the filepass
Every drink in its regiondecided by a number, from the filepass
No label on an edgedecided by a number, from the filefail
read the post
its other runs
the prompt it was given
Using LaTeX and TikZ, draw a Venn diagram of three overlapping circles labelled "Has espresso", "Has milk" and "Served cold". Write each of these drinks in the region where it belongs: short black, flat white, iced latte, iced long black, cold brew, babyccino, milkshake, pour-over.
Frozen at v1. This model got this and nothing else.
ground truth

Short black is espresso only, flat white espresso and milk, iced long black espresso and cold, iced latte all three, babyccino milk only, milkshake milk and cold, cold brew cold only, and pour-over outside every circle. The circles and words are read back out of the compiled PDF, each word has to be centred in its own region, and no letter may touch a circle's outline, with the line's width counted. How it is scored, and this run's files on GitHub.
