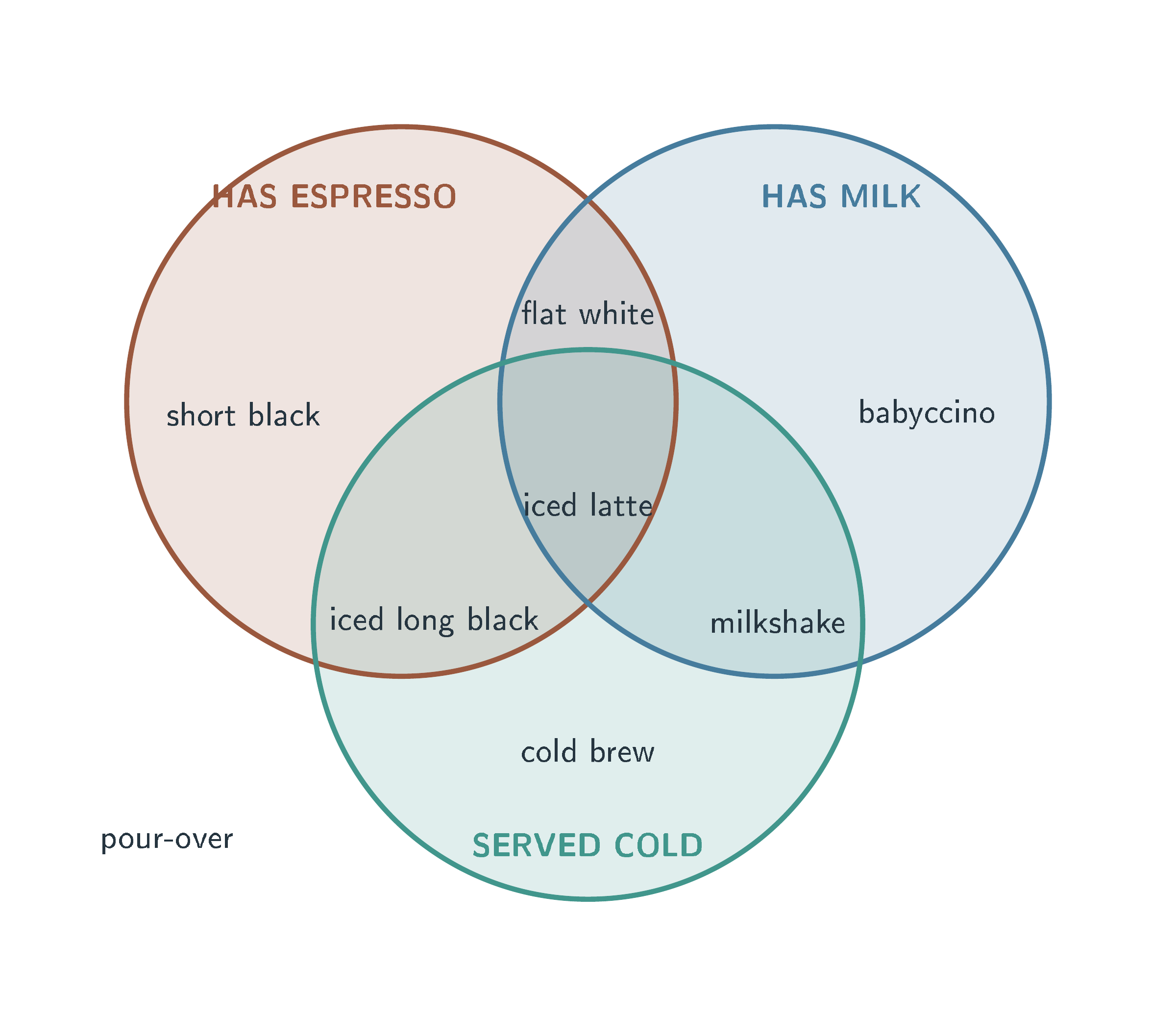

TikZ: a three-set coffee Venn diagram, by gpt-6-sol
gpt-6-sol · round 3 of 3 · seed 2$0.07SVGPNGPDFvenn.tex
venn.tex · 36 lines
\documentclass[tikz,border=12pt]{standalone}
\usepackage[T1]{fontenc}
\usetikzlibrary{calc}
\begin{document}
\begin{tikzpicture}[font=\sffamily]
  \definecolor{espresso}{HTML}{9A583E}
  \definecolor{milk}{HTML}{467C9D}
  \definecolor{cold}{HTML}{41968C}
  \definecolor{ink}{HTML}{263540}
  \path[use as bounding box] (-5.25,-4.7) rectangle (5.25,4.25);

  % Transparent washes show every intersection without hiding its neighbours.
  \fill[espresso,opacity=.16] (-1.8,.8) circle (2.65);
  \fill[milk,opacity=.16] (1.8,.8) circle (2.65);
  \fill[cold,opacity=.16] (0,-1.35) circle (2.65);
  \draw[espresso,line width=1.4pt] (-1.8,.8) circle (2.65);
  \draw[milk,line width=1.4pt] (1.8,.8) circle (2.65);
  \draw[cold,line width=1.4pt] (0,-1.35) circle (2.65);

  \tikzset{heading/.style={font=\sffamily\bfseries\small,inner sep=1pt},
           drink/.style={font=\sffamily\small,text=ink,align=center,inner sep=1pt}}
  \node[heading,text=espresso] at (-2.45,2.78) {HAS ESPRESSO};
  \node[heading,text=milk] at (2.45,2.78) {HAS MILK};
  \node[heading,text=cold] at (0,-3.48) {SERVED COLD};

  \node[drink] at (-3.32,.68) {short black};
  \node[drink] at (3.27,.68) {babyccino};
  \node[drink] at (0,1.66) {flat white};
  \node[drink] at (-1.48,-1.32) {iced long black};
  \node[drink] at (1.83,-1.32) {milkshake};
  \node[drink] at (0,-.19) {iced latte};
  \node[drink] at (0,-2.56) {cold brew};
  \node[drink] at (-4.06,-3.47) {pour-over};
\end{tikzpicture}
\end{document}
round 1 of 3
A three-set coffee Venn diagram, by GPT-6 Sol, the render after round 1
123What the model saw after each round. The picture above is the round that was scored, round 3.
gallery/A three-set coffee Venn diagram/GPT-6 Sol, run 2

Every drink right, and iced latte across a line.

modelopenai/gpt-6-soltasktikz-coffee-venn@v1date2026-09-25rounds3 of 8 allowedcost$0.0659thinkingmediumtokens37,882 in, 4,489 out, of which 3,453 reasoningtime1 min 33 sfailurelabelling
Compilesdecided by a number, from the filepass
Seven regions, three namesdecided by a number, from the filepass
Every drink in its regiondecided by a number, from the filepass
No label on an edgedecided by a number, from the filefail
read the post
its other runs
A three-set coffee Venn diagram, by GPT-6 Sol, run 1run 1 · 4r · $0.0625Every drink right and every label clear, with flat white close to both lines. It said the render looked correct.A three-set coffee Venn diagram, by GPT-6 Sol, run 1run 1 · 3r · $0.0555A three-set coffee Venn diagram, by GPT-6 Sol, run 2run 2 · 3r · $0.0666A three-set coffee Venn diagram, by GPT-6 Sol, run 3run 3 · 3r · $0.0558White boxes behind every label, and every letter clear of the lines.A three-set coffee Venn diagram, by GPT-6 Sol, run 3run 3 · 3r · $0.0418A three-set coffee Venn diagram, by GPT-6 Sol, run 4run 4 · 5r · $0.1126A three-set coffee Venn diagram, by GPT-6 Sol, run 5run 5 · 4r · $0.0589A three-set coffee Venn diagram, by GPT-6 Sol, run 6run 6 · 3r · $0.0465A three-set coffee Venn diagram, by GPT-6 Sol, run 7run 7 · 3r · $0.0494A three-set coffee Venn diagram, by GPT-6 Sol, run 8run 8 · 3r · $0.0496A three-set coffee Venn diagram, by GPT-6 Sol, run 9run 9 · 5r · $0.0902A three-set coffee Venn diagram, by GPT-6 Sol, run 10run 10 · 3r · $0.0627
same prompt, other modelsall 50 runs on A three-set coffee Venn diagram →
the prompt it was given
Using LaTeX and TikZ, draw a Venn diagram of three overlapping circles labelled "Has espresso", "Has milk" and "Served cold". Write each of these drinks in the region where it belongs: short black, flat white, iced latte, iced long black, cold brew, babyccino, milkshake, pour-over.
Frozen at v1. This model got this and nothing else.
ground truth

Short black is espresso only, flat white espresso and milk, iced long black espresso and cold, iced latte all three, babyccino milk only, milkshake milk and cold, cold brew cold only, and pour-over outside every circle. The circles and words are read back out of the compiled PDF, each word has to be centred in its own region, and no letter may touch a circle's outline, with the line's width counted. How it is scored, and this run's files on GitHub.
