TikZ: a three-set coffee Venn diagram, by kimi-k3
kimi-k3 · round 1 · seed 2$0.04SVGPNGPDFvenn.tex
venn.tex · 26 lines
\documentclass[border=10pt]{standalone}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  % bounding box
  \useasboundingbox (-4.2,-3.2) rectangle (4.2,4.2);
  % Circles
  \draw[thick,fill=red!20,fill opacity=0.6] (-1.1,0.8) circle (1.9);
  \draw[thick,fill=blue!20,fill opacity=0.6] (1.1,0.8) circle (1.9);
  \draw[thick,fill=green!20,fill opacity=0.6] (0,-1.2) circle (1.9);
  % Labels
  \node[font=\bfseries] at (-2.3,2.9) {Has espresso};
  \node[font=\bfseries] at (2.3,2.9) {Has milk};
  \node[font=\bfseries] at (0,-3.35) {Served cold};
  % Drinks
  \node at (-1.9,1.1) {short black};
  \node at (0,2.2) {flat white};
  \node at (0,0.35) {iced latte};
  \node at (-0.95,-0.75) {\shortstack{iced long\\black}};
  \node at (0,-2.15) {cold brew};
  \node at (1.9,1.1) {babyccino};
  \node at (0.95,-0.75) {milkshake};
  \node at (-3.3,-2.7) {pour-over};
\end{tikzpicture}
\end{document}

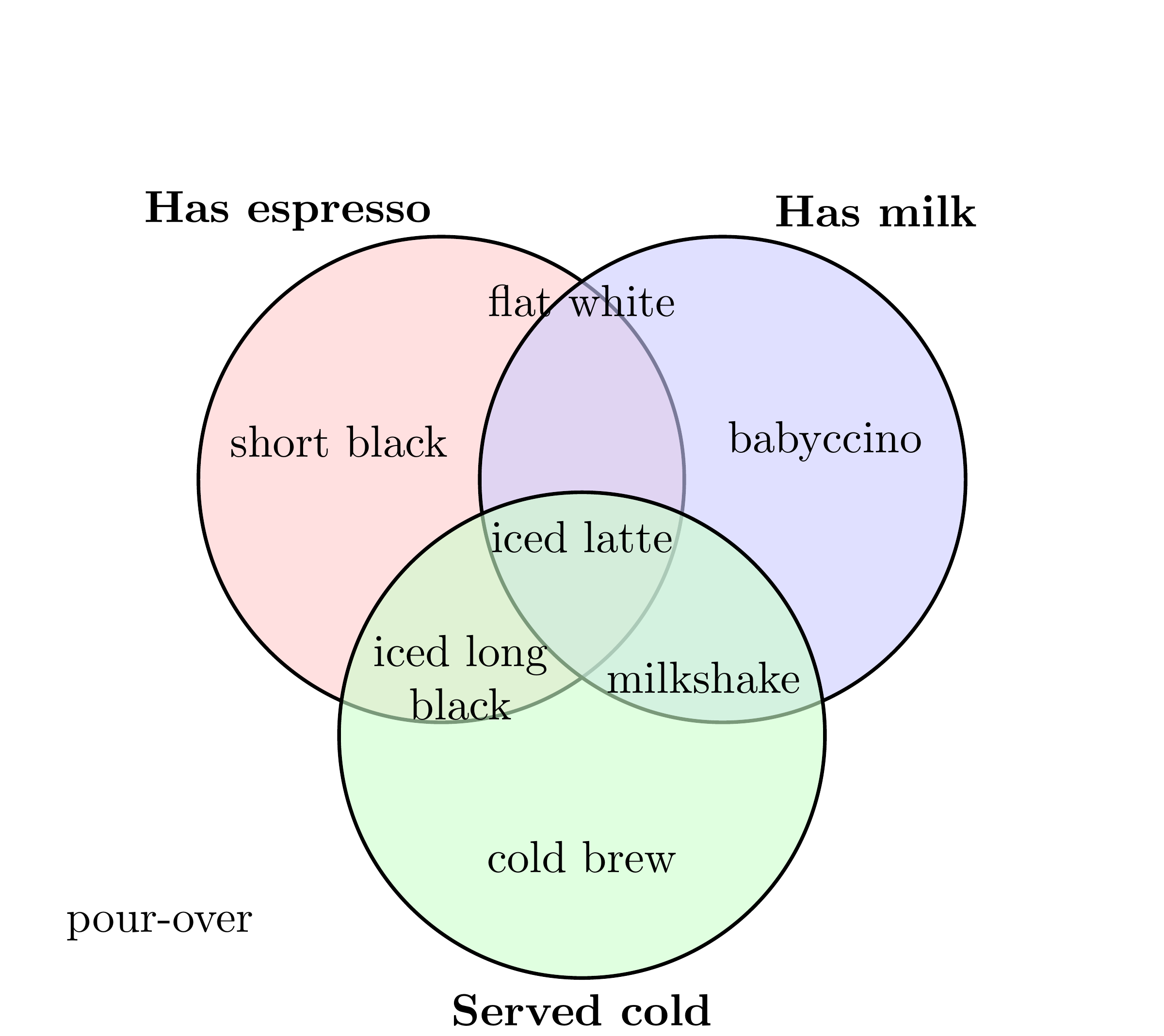

gallery/A three-set coffee Venn diagram/Kimi K3, run 2

Four labels across an edge after one render, which it called done.

modelmoonshotai/kimi-k3tasktikz-coffee-venn@v1date2026-09-25rounds1 of 8 allowedcost$0.0373thinkingmediumtokens10,645 in, 913 out, of which 191 reasoningtime21 sfailurelabelling
Compilesdecided by a number, from the filepass
Seven regions, three namesdecided by a number, from the filepass
Every drink in its regiondecided by a number, from the filepass
No label on an edgedecided by a number, from the filefail
read the post
its other runs
A three-set coffee Venn diagram, by Kimi K3, run 1run 1 · 3r · $0.0769Every drink in its region, with milkshake across an edge.A three-set coffee Venn diagram, by Kimi K3, run 3run 3 · 1r · $0.0578Three labels across an edge after one render.
same prompt, other modelsall 50 runs on A three-set coffee Venn diagram →
the prompt it was given
Using LaTeX and TikZ, draw a Venn diagram of three overlapping circles labelled "Has espresso", "Has milk" and "Served cold". Write each of these drinks in the region where it belongs: short black, flat white, iced latte, iced long black, cold brew, babyccino, milkshake, pour-over.
Frozen at v1. This model got this and nothing else.
ground truth

Short black is espresso only, flat white espresso and milk, iced long black espresso and cold, iced latte all three, babyccino milk only, milkshake milk and cold, cold brew cold only, and pour-over outside every circle. The circles and words are read back out of the compiled PDF, each word has to be centred in its own region, and no letter may touch a circle's outline, with the line's width counted. How it is scored, and this run's files on GitHub.
