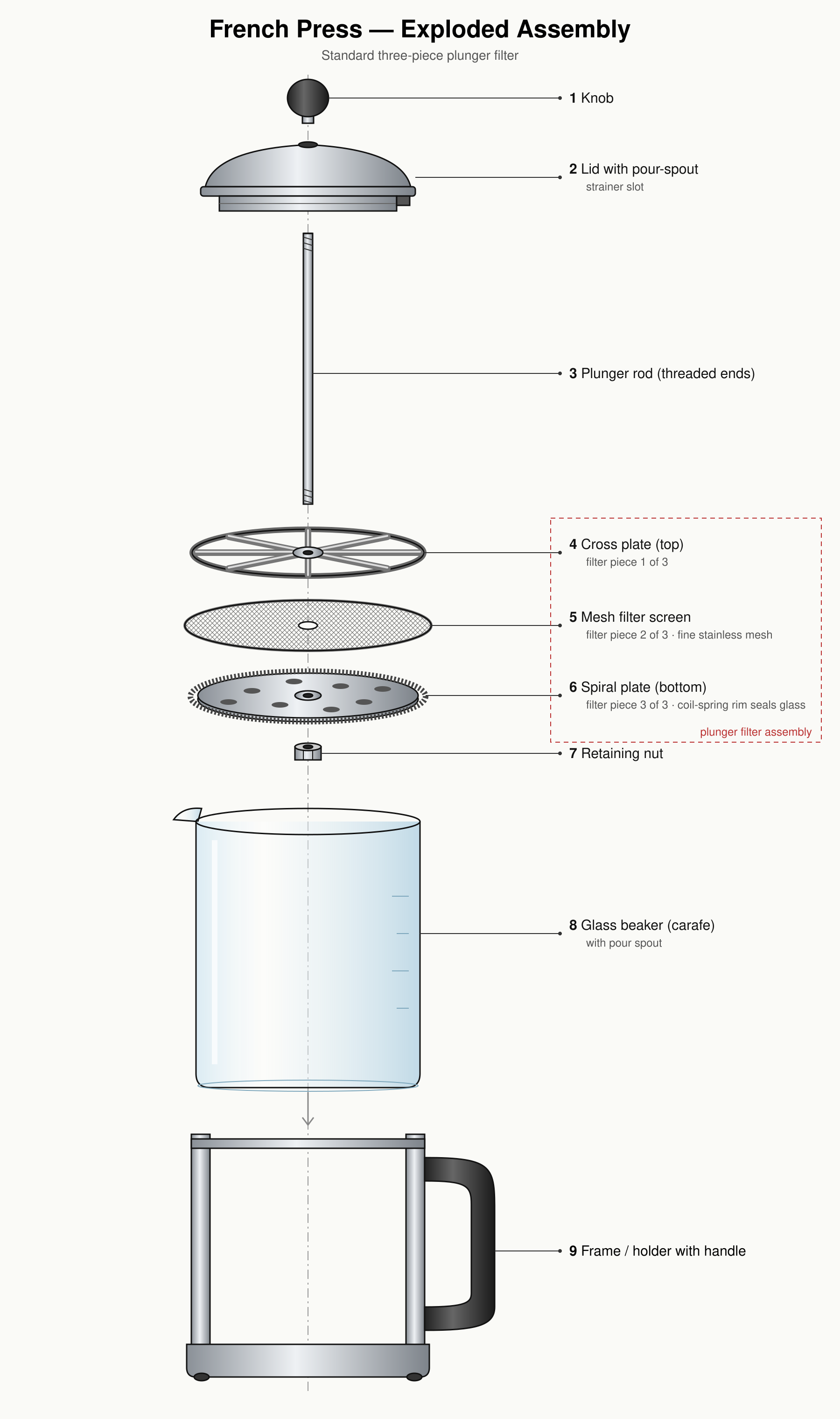

</svg>Exploded French press: Opus 5.5
modelanthropic/claude-opus-5.5tasksvg-french-press@v2date2026-10-01rounds3 of 8 allowedcost$0.2307failurepart-order
All seven partsdecided by looking · Pass if all seven are drawn as separate shapes and each has a label naming it. A part that is only named in a label or a comment, with nothing drawn, fails it.pass
Stack orderdecided by a number, from the filefail
Filter fits the glassdecided by a number, from the filepass
One assembly axisdecided by looking · Pass if one vertical line runs through the middle of every part, and every leader line leaves from the same side. One part pushed off to the side fails it.pass
Labels matchdecided by looking · Pass if following each leader line from its label ends on the part that label names. One label pointing at the wrong part, or at nothing, fails it.pass
There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.
run 1 · 3r · $0.2115The cleanest press on the bench, with the cross-plate on top of the mesh.
run 2 · 2r · $0.2084The stack the right way up in two rounds, with the frame drawn beside the glass instead of under it.
run 2 · 2r · $0.1625

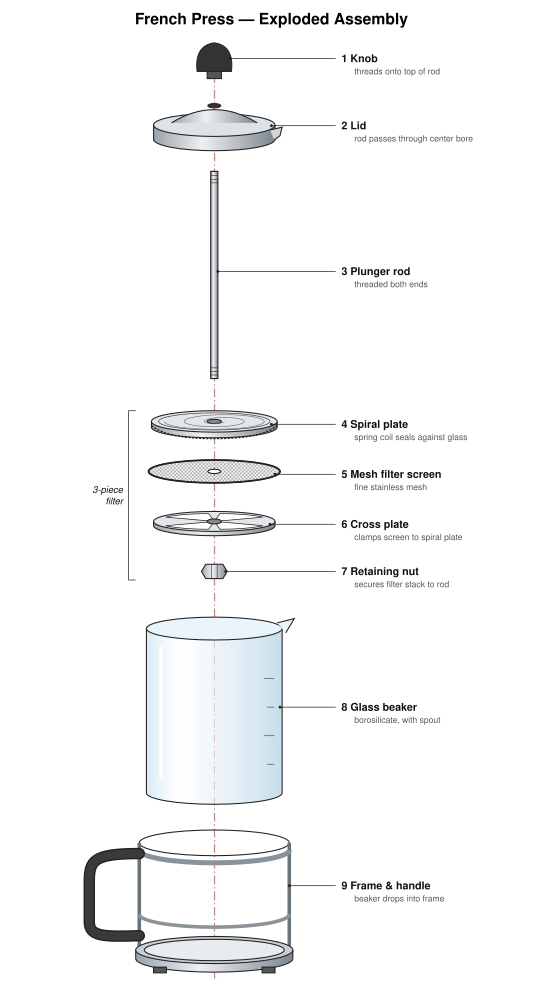

run 3 · 3r · $0.2209Right in round 1, then it swapped the plates, and its filter is wider than the glass.same prompt, other modelsall 33 runs on Exploded French press →
Draw an exploded assembly diagram of a French press, as an SVG. Use the standard three-piece plunger filter rather than a two-piece travel press.Frozen at v2. This model got this and nothing else.
The standard three-piece plunger, from the top down: spiral (spring) plate, mesh screen, cross-plate. The cross-plate is the bottom piece, because its threaded stem is what the rod screws into. The spiral plate above the mesh is what presses the mesh edge out against the glass. Checked against the WebstaurantStore anatomy diagram, which is drawn exploded and labelled, and against each part's y coordinate in the SVG rather than its comment. Two-piece travel presses exist and stack differently, which is why v2 of the prompt names the design. How it is scored, and this run's files on GitHub.
