SVG: exploded French press, by command-a-plus
command-a-plus · round 2 of 2 · seed 1$0.03SVGPNGpress.svg

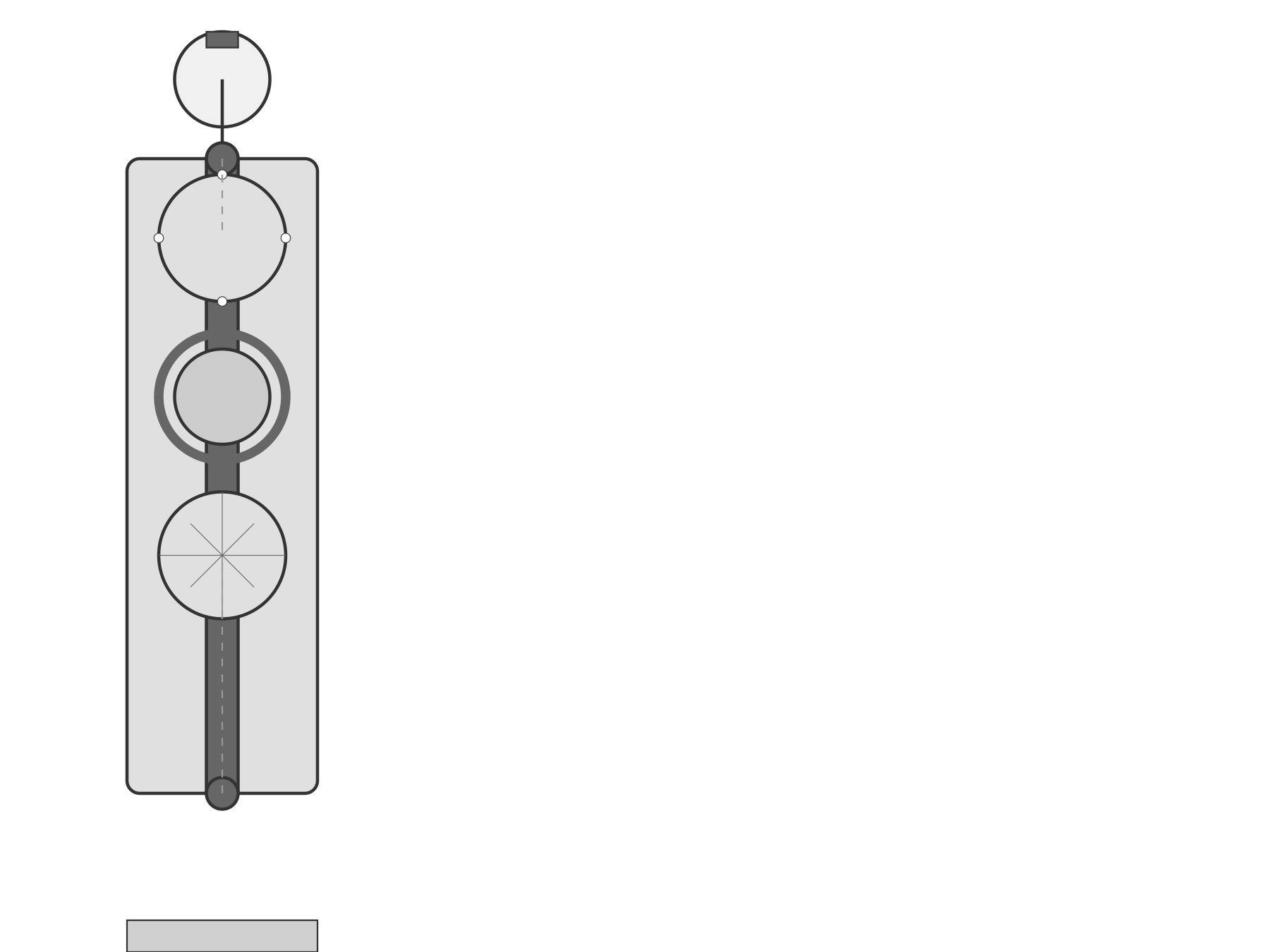

press.svg · 52 lines
<?xml version="1.0" encoding="UTF-8"?>
<svg width="800" height="600" viewBox="0 0 800 600" xmlns="http://www.w3.org/2000/svg">
  <!-- French press exploded assembly diagram (three-piece plunger filter) -->
  <defs>
    <!-- No gradients needed for this simple diagram -->
  </defs>

  <!-- Main carafe body -->
  <rect x="80" y="100" width="120" height="400" rx="8" ry="8" fill="#e0e0e0" stroke="#333" stroke-width="2"/>
  <!-- Base of carafe -->
  <rect x="80" y="580" width="120" height="20" fill="#d0d0d0" stroke="#333" stroke-width="1"/>
  <!-- Small foot for stability -->
  <rect x="90" y="610" width="100" height="10" fill="#666" stroke="#333" stroke-width="1"/>

  <!-- Lid with handle -->
  <circle cx="140" cy="50" r="30" fill="#f0f0f0" stroke="#333" stroke-width="2"/>
  <!-- Lid handle -->
  <rect x="130" y="20" width="20" height="10" fill="#666" stroke="#333" stroke-width="1"/>
  <!-- Line showing lid attaches to plunger rod -->
  <line x1="140" y1="50" x2="140" y2="100" stroke="#333" stroke-width="2"/>

  <!-- Plunger rod (vertical metal rod) -->
  <rect x="130" y="100" width="20" height="400" fill="#666" stroke="#333" stroke-width="2"/>
  <!-- Top cap of rod (also acts as lid interface) -->
  <circle cx="140" cy="100" r="10" fill="#666" stroke="#333" stroke-width="2"/>
  <!-- Bottom cap of rod -->
  <circle cx="140" cy="500" r="10" fill="#666" stroke="#333" stroke-width="2"/>

  <!-- Upper filter plate (perforated) -->
  <circle cx="140" cy="150" r="40" fill="#e0e0e0" stroke="#333" stroke-width="2"/>
  <!-- Perforation holes -->
  <circle cx="140" cy="110" r="3" fill="#fff" stroke="#333" stroke-width="0.5"/>
  <circle cx="180" cy="150" r="3" fill="#fff" stroke="#333" stroke-width="0.5"/>
  <circle cx="140" cy="190" r="3" fill="#fff" stroke="#333" stroke-width="0.5"/>
  <circle cx="100" cy="150" r="3" fill="#fff" stroke="#333" stroke-width="0.5"/>

  <!-- Sealing ring (between upper and lower filter) -->
  <circle cx="140" cy="250" r="40" fill="none" stroke="#666" stroke-width="6"/>
  <circle cx="140" cy="250" r="30" fill="#ccc" stroke="#333" stroke-width="2"/>

  <!-- Lower filter mesh -->
  <circle cx="140" cy="350" r="40" fill="#e0e0e0" stroke="#333" stroke-width="2"/>
  <!-- Mesh pattern lines -->
  <line x1="100" y1="350" x2="180" y2="350" stroke="#666" stroke-width="0.5"/>
  <line x1="140" y1="310" x2="140" y2="390" stroke="#666" stroke-width="0.5"/>
  <line x1="120" y1="330" x2="160" y2="370" stroke="#666" stroke-width="0.5"/>
  <line x1="160" y1="330" x2="120" y2="370" stroke="#666" stroke-width="0.5"/>

  <!-- Dashed lines showing rod passes through filter components -->
  <line x1="140" y1="100" x2="140" y2="150" stroke="#999" stroke-width="1" stroke-dasharray="5,5"/>
  <line x1="140" y1="500" x2="140" y2="350" stroke="#999" stroke-width="1" stroke-dasharray="5,5"/>
</svg>
gallery/Exploded French press/Command A+, run 1

Exploded French press: Command A+

modelcohere/command-a-plustasksvg-french-press@v2date2026-09-27rounds2 of 8 allowedcost$0.0252thinkingmediumtokens18,574 in, 13,061 out, of which 10,605 reasoningtime1 min 2 sfailurecompleteness · physical-plausibility · labelling
All seven partsdecided by looking · Pass if all seven are drawn as separate shapes and each has a label naming it. A part that is only named in a label or a comment, with nothing drawn, fails it.fail
Stack orderdecided by a number, from the filefail
Filter fits the glassdecided by a number, from the filefail
One assembly axisdecided by looking · Pass if one vertical line runs through the middle of every part, and every leader line leaves from the same side. One part pushed off to the side fails it.fail
Labels matchdecided by looking · Pass if following each leader line from its label ends on the part that label names. One label pointing at the wrong part, or at nothing, fails it.fail
