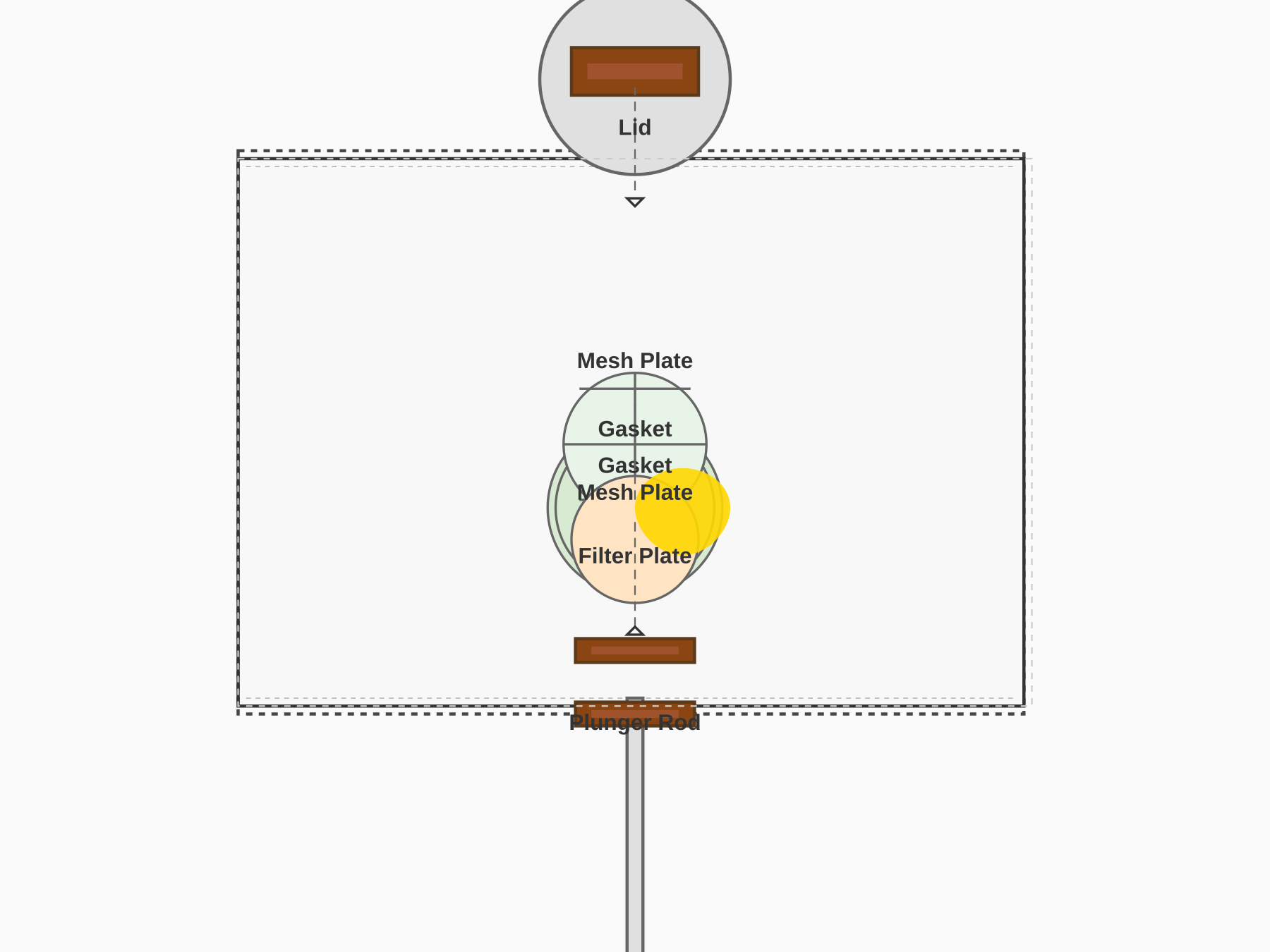

SVG: exploded French press, by command-a-plus
command-a-plus · round 4 of 4 · seed 2$0.04SVGPNGpress.svg
press.svg · 110 lines
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<svg width="800" height="600" viewBox="0 0 800 600" xmlns="http://www.w3.org/2000/svg">
  <style>
    .component { fill: #f8f8f8; stroke: #333; stroke-width: 2; }
    .metal { fill: #e0e0e0; stroke: #666; stroke-width: 2; }
    .handle { fill: #8B4513; stroke: #5a3a1a; stroke-width: 2; }
    .filter { fill: #d9ead3; stroke: #666; stroke-width: 1.5; }
    .mesh { fill: #e8f4e8; stroke: #666; stroke-width: 1.5; }
    .gasket { fill: #ffd700; stroke: #666; stroke-width: 1; }
    .text { font-family: Arial, sans-serif; font-size: 14px; fill: #333; font-weight: bold; }
    .exploded-line { stroke: #666; stroke-dasharray: 5,5; stroke-width: 1; }
    .assembly-line { stroke: #333; stroke-width: 1; stroke-opacity: 0.6; }
  </style>

  <!-- Background -->
  <rect width="800" height="600" fill="#fafafa"/>

  <!-- Main cylinder body (exploded, front removed to show internals) -->
  <!-- Back half of body -->
  <path d="M150,100
            L645,100
            L645,445
            L150,445
            Z" class="component" fill-opacity="0.9"/>
  <!-- Side walls -->
  <path d="M150,95 L645,95 L645,450 L150,450 Z" fill="none" stroke="#333" stroke-width="2" stroke-dasharray="4,4" opacity="0.9"/>

  <!-- Glass simulation lines on back wall -->
  <g stroke="#999" stroke-width="0.5" stroke-dasharray="3,3">
    <line x1="155" y1="105" x2="640" y2="105"/>
    <line x1="155" y1="440" x2="640" y2="440"/>
  </g>

  <!-- Lid (exploded up) -->
  <g transform="translate(400, 50)">
    <circle cx="0" cy="0" r="60" class="metal"/>
    <rect x="-40" y="-20" width="80" height="30" class="handle"/>
    <rect x="-30" y="-10" width="60" height="10" fill="#A0522D"/>
  </g>

  <!-- Plunger rod (exploded down, with cross-handle) -->
  <g transform="translate(400, 450)">
    <rect x="-5" y="-10" width="10" height="190" class="metal"/>
    <rect x="-37.5" y="-7.5" width="75" height="15" class="handle"/>
    <rect x="-27.5" y="-2.5" width="55" height="5" fill="#A0522D"/>
  </g>

  <!-- Filter assembly (exploded down, separated pieces) -->
  <g transform="translate(400, 320)">
    <!-- Bottom filter plate -->
    <circle cx="0" cy="0" r="55" class="filter"/>
    <circle cx="0" cy="0" r="50" stroke="#666" stroke-width="1.5" fill="none"/>
    <text x="0" y="-58" text-anchor="middle" class="text">Filter Plate</text>
  </g>

  <g transform="translate(400, 280)">
    <!-- Middle mesh plate -->
    <circle cx="0" cy="0" r="45" class="mesh"/>
    <g stroke="#666" stroke-width="1.5">
      <line x1="-45" y1="0" x2="45" y2="0"/>
      <line x1="0" y1="-45" x2="0" y2="45"/>
      <line x1="-35" y1="-35" x2="35" y2="-35"/>
      <line x1="-35" y1="35" x2="35" y2="35"/>
    </g>
    <text x="0" y="-48" text-anchor="middle" class="text">Mesh Plate</text>
  </g>

  <g transform="translate(400, 340)">
    <!-- Top gasket/plate -->
    <circle cx="0" cy="0" r="40" fill="#ffe4c4" stroke="#666" stroke-width="1.5"/>
    <!-- Gasket material visualization -->
    <path d="M0,-20
              C0,-35 15,-45 30,-45
              C45,-45 60,-35 60,-20
              C60,-5 45,10 30,10
              C15,10 0,-5 0,-20 Z" fill="#ffd700" opacity="0.9"/>
    <text x="0" y="-42" text-anchor="middle" class="text">Gasket</text>
  </g>

  <!-- Cross-piece handle for plunger -->
  <g transform="translate(400, 410)">
    <rect x="-37.5" y="-7.5" width="75" height="15" class="handle"/>
    <rect x="-27.5" y="-2.5" width="55" height="5" fill="#A0522D"/>
  </g>

  <!-- Exploded positioning visualization -->
  <g stroke="#666" stroke-dasharray="6,4" stroke-width="1">
    <!-- Body outline (dashed to show cavity) -->
    <rect x="150" y="100" width="500" height="345" fill="none" stroke="#ccc" stroke-dasharray="4,4" stroke-width="1"/>

    <!-- Assembly lines showing relationships -->
    <line x1="400" y1="120" x2="400" y2="55"/>
    <line x1="400" y1="395" x2="400" y2="325"/>
    <line x1="400" y1="315" x2="400" y2="275"/>
    <line x1="400" y1="270" x2="400" y2="235"/>
  </g>

  <!-- Labels -->
  <text x="400" y="85" text-anchor="middle" class="text">Lid</text>
  <text x="400" y="460" text-anchor="middle" class="text">Plunger Rod</text>
  <text x="400" y="355" text-anchor="middle" class="text">Filter Plate</text>
  <text x="400" y="315" text-anchor="middle" class="text">Mesh Plate</text>
  <text x="400" y="275" text-anchor="middle" class="text">Gasket</text>

  <!-- Assembly direction arrows -->
  <g stroke="#333" stroke-width="1.5" fill="none">
    <path d="M400,130 L395,125 L405,125 Z"/>
    <path d="M400,395 L395,400 L405,400 Z"/>
  </g>
</svg>
gallery/Exploded French press/Command A+, run 2

Exploded French press: Command A+

modelcohere/command-a-plustasksvg-french-press@v2date2026-09-27rounds4 of 8 allowedcost$0.0398thinkingmediumtokens95,651 in, 7,431 out, of which 2,112 reasoningtime48 sfailurecompleteness · physical-plausibility · labelling
All seven partsdecided by looking · Pass if all seven are drawn as separate shapes and each has a label naming it. A part that is only named in a label or a comment, with nothing drawn, fails it.fail
Stack orderdecided by a number, from the filefail
Filter fits the glassdecided by a number, from the filefail
One assembly axisdecided by looking · Pass if one vertical line runs through the middle of every part, and every leader line leaves from the same side. One part pushed off to the side fails it.fail
Labels matchdecided by looking · Pass if following each leader line from its label ends on the part that label names. One label pointing at the wrong part, or at nothing, fails it.fail

There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.

its other runs
Exploded French press, by Command A+, run 1run 1 · 2r · $0.0252Exploded French press, by Command A+, run 3run 3 · 1r · $0.0209Terrible
same prompt, other modelsall 33 runs on Exploded French press →
the prompt it was given
Draw an exploded assembly diagram of a French press, as an SVG. Use the standard three-piece plunger filter rather than a two-piece travel press.
Frozen at v2. This model got this and nothing else.
ground truth

The standard three-piece plunger, from the top down: spiral (spring) plate, mesh screen, cross-plate. The cross-plate is the bottom piece, because its threaded stem is what the rod screws into. The spiral plate above the mesh is what presses the mesh edge out against the glass. Checked against the WebstaurantStore anatomy diagram, which is drawn exploded and labelled, and against each part's y coordinate in the SVG rather than its comment. Two-piece travel presses exist and stack differently, which is why v2 of the prompt names the design. How it is scored, and this run's files on GitHub.
