press.svg · 178 lines
<svg xmlns="http://www.w3.org/2000/svg" width="1100" height="1640" viewBox="0 0 1100 1640" font-family="DejaVu Sans, Verdana, sans-serif">
<defs>
<radialGradient id="knobG" cx="0.35" cy="0.3" r="0.9">
<stop offset="0" stop-color="#565b60"/><stop offset="1" stop-color="#0d0f11"/>
</radialGradient>
<linearGradient id="steelRod" x1="0" y1="0" x2="1" y2="0">
<stop offset="0" stop-color="#6e747a"/><stop offset="0.35" stop-color="#eef0f2"/>
<stop offset="0.7" stop-color="#9aa0a6"/><stop offset="1" stop-color="#53585d"/>
</linearGradient>
<radialGradient id="lidG" cx="0.42" cy="0.38" r="0.75">
<stop offset="0" stop-color="#fbfcfd"/><stop offset="0.7" stop-color="#d3d8dc"/><stop offset="1" stop-color="#aeb4ba"/>
</radialGradient>
<linearGradient id="plateG" x1="0" y1="0" x2="0" y2="1">
<stop offset="0" stop-color="#5a6066"/><stop offset="1" stop-color="#33383d"/>
</linearGradient>
<linearGradient id="glassG" x1="0" y1="0" x2="0" y2="1">
<stop offset="0" stop-color="#e8f5fa" stop-opacity="0.55"/>
<stop offset="1" stop-color="#bfdde9" stop-opacity="0.45"/>
</linearGradient>
<linearGradient id="chromeG" x1="0" y1="0" x2="0" y2="1">
<stop offset="0" stop-color="#f4f5f6"/><stop offset="0.45" stop-color="#8b9095"/>
<stop offset="0.7" stop-color="#e6e8ea"/><stop offset="1" stop-color="#6a6f74"/>
</linearGradient>
<radialGradient id="baseG" cx="0.45" cy="0.35" r="0.8">
<stop offset="0" stop-color="#eceef0"/><stop offset="0.75" stop-color="#b9bfc5"/><stop offset="1" stop-color="#8f959b"/>
</radialGradient>
<clipPath id="meshClip"><ellipse cx="550" cy="930" rx="146" ry="38"/></clipPath>
</defs>
<rect width="1100" height="1640" fill="#ffffff"/>
<!-- title -->

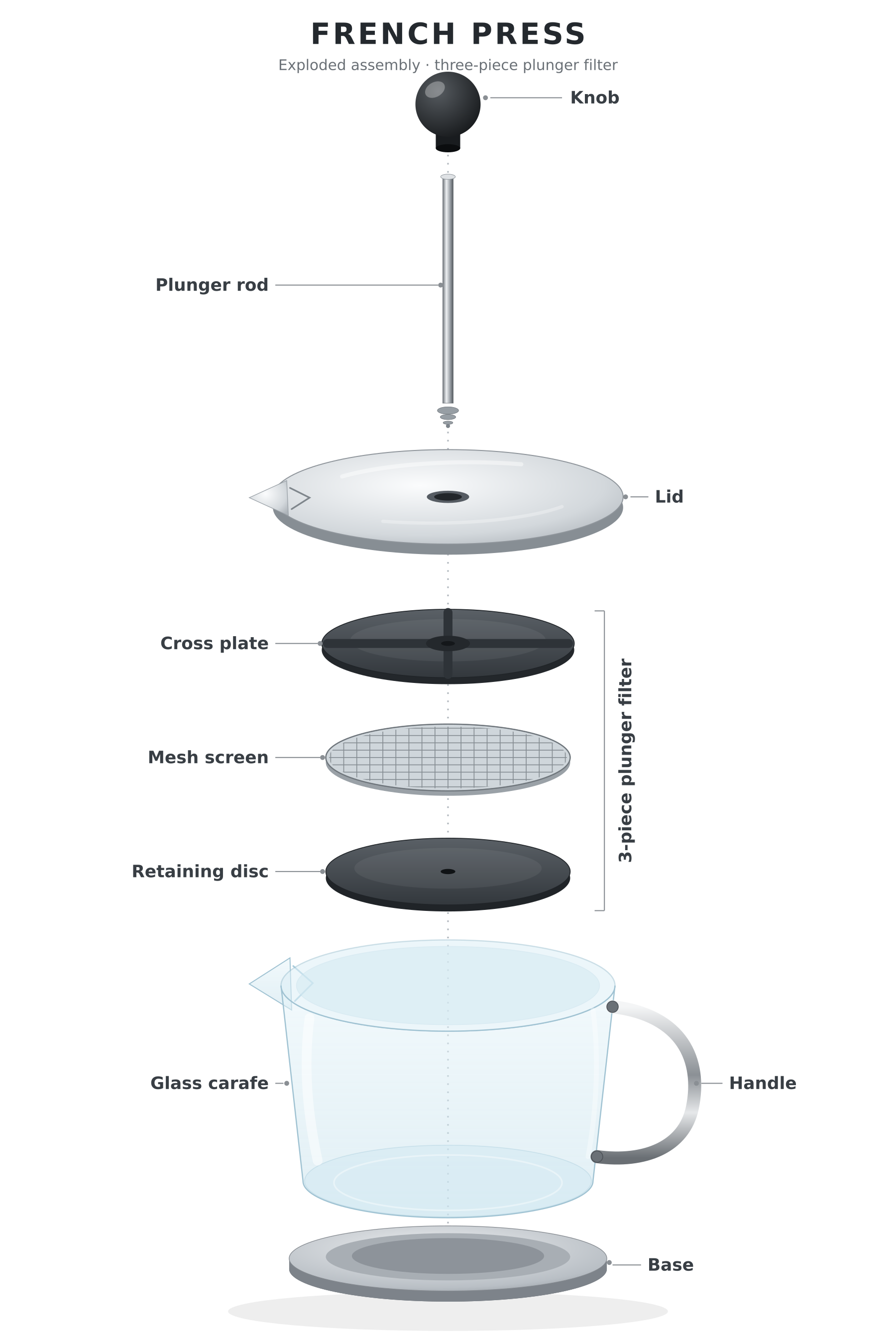

<text x="550" y="54" text-anchor="middle" font-size="36" font-weight="bold" letter-spacing="3" fill="#24292e">FRENCH PRESS</text>
<text x="550" y="86" text-anchor="middle" font-size="18" fill="#6a7076">Exploded assembly · three-piece plunger filter</text>
<!-- center axis -->
<line x1="550" y1="100" x2="550" y2="1585" stroke="#b3b9bf" stroke-width="2" stroke-dasharray="2 8"/>
<!-- ===== KNOB ===== -->
<g>
<rect x="535" y="156" width="30" height="26" fill="#191c1f"/>
<ellipse cx="550" cy="182" rx="15" ry="5" fill="#0b0d0f"/>
<circle cx="550" cy="128" r="40" fill="url(#knobG)"/>
<ellipse cx="534" cy="110" rx="13" ry="9" fill="#ffffff" opacity="0.3" transform="rotate(-30 534 110)"/>
</g>
<!-- ===== PLUNGER ROD ===== -->
<g>
<rect x="543.5" y="217" width="13" height="278" fill="url(#steelRod)" stroke="#6a7076" stroke-width="0.5"/>
<ellipse cx="550" cy="217" rx="9" ry="3.2" fill="#dfe2e5" stroke="#8d949a" stroke-width="0.6"/>
<!-- spiral screw tip -->
<ellipse cx="550" cy="504" rx="13" ry="4.5" fill="#979ea4" stroke="#6a7076" stroke-width="0.5"/>
<ellipse cx="550" cy="512" rx="9.5" ry="3.2" fill="#979ea4" stroke="#6a7076" stroke-width="0.5"/>
<ellipse cx="550" cy="519" rx="6" ry="2" fill="#979ea4" stroke="#6a7076" stroke-width="0.5"/>
<circle cx="550" cy="523" r="2.5" fill="#7c838a"/>
</g>
<!-- ===== LID ===== -->
<g>
<ellipse cx="550" cy="623" rx="215" ry="58" fill="#878e94"/>
<ellipse cx="550" cy="610" rx="215" ry="58" fill="url(#lidG)" stroke="#8f959b" stroke-width="1.2"/>
<path d="M 420 585 A 205 50 0 0 1 640 570" stroke="#ffffff" stroke-width="5" fill="none" opacity="0.45" stroke-linecap="round"/>
<path d="M 470 640 A 190 44 0 0 0 690 622" stroke="#ffffff" stroke-width="4" fill="none" opacity="0.3" stroke-linecap="round"/>
<!-- pouring spout lip on rim, hugging the edge -->
<path d="M 352 590 L 306 611 L 354 633 Z" fill="url(#lidG)" stroke="#9aa1a7" stroke-width="0.8"/>
<path d="M 356 599 L 380 611 L 358 625" fill="none" stroke="#7f868c" stroke-width="2" stroke-linecap="round"/>
<!-- central hole for rod -->
<ellipse cx="550" cy="610" rx="26" ry="7.5" fill="#565c63"/>
<ellipse cx="550" cy="610" rx="17" ry="4.6" fill="#22262a"/>
</g>
<!-- ===== FILTER PIECE 1: CROSS PLATE ===== -->
<g>
<ellipse cx="550" cy="798" rx="155" ry="42" fill="#23272b"/>
<ellipse cx="550" cy="790" rx="155" ry="42" fill="url(#plateG)" stroke="#1f2327" stroke-width="1"/>
<ellipse cx="550" cy="786" rx="120" ry="26" fill="#ffffff" opacity="0.06"/>
<g stroke="#2e3338" stroke-width="11" stroke-linecap="round">
<line x1="550" y1="790" x2="698" y2="790"/>
<line x1="550" y1="790" x2="402" y2="790"/>
<line x1="550" y1="790" x2="550" y2="752"/>
<line x1="550" y1="790" x2="550" y2="828"/>
</g>
<ellipse cx="550" cy="790" rx="27" ry="9.5" fill="#24282c"/>
<ellipse cx="550" cy="790" rx="8.5" ry="3" fill="#14171a"/>
</g>
<!-- ===== FILTER PIECE 2: MESH SCREEN ===== -->
<g>
<ellipse cx="550" cy="936" rx="150" ry="41" fill="#9aa1a7"/>
<ellipse cx="550" cy="930" rx="150" ry="41" fill="#cfd6db" stroke="#8a9198" stroke-width="1"/>
<g clip-path="url(#meshClip)" stroke="#72797f" stroke-width="1" opacity="0.8">
<path d="M406 892V968 M422 892V968 M438 892V968 M454 892V968 M470 892V968 M486 892V968 M502 892V968 M518 892V968 M534 892V968 M550 892V968 M566 892V968 M582 892V968 M598 892V968 M614 892V968 M630 892V968 M646 892V968 M662 892V968 M678 892V968 M694 892V968"/>
<path d="M404 894H696 M404 903H696 M404 912H696 M404 921H696 M404 930H696 M404 939H696 M404 948H696 M404 957H696 M404 966H696"/>
</g>
<ellipse cx="550" cy="930" rx="150" ry="41" fill="none" stroke="#6f767c" stroke-width="1.5"/>
</g>
<!-- ===== FILTER PIECE 3: RETAINING DISC ===== -->
<g>
<ellipse cx="550" cy="1078" rx="150" ry="41" fill="#202428"/>
<ellipse cx="550" cy="1070" rx="150" ry="41" fill="url(#plateG)" stroke="#1f2327" stroke-width="1"/>
<ellipse cx="550" cy="1066" rx="115" ry="25" fill="#ffffff" opacity="0.06"/>
<ellipse cx="550" cy="1070" rx="9" ry="3.2" fill="#101315"/>
</g>
<!-- ground shadow -->
<ellipse cx="550" cy="1610" rx="270" ry="24" fill="#000000" opacity="0.07"/>
<!-- ===== GLASS CARAFE ===== -->
<g>
<!-- pour lip on carafe rim -->
<path d="M 356 1176 L 306 1208 L 358 1240 Z" fill="url(#glassG)" stroke="#9fc2d2" stroke-width="1.2"/>
<path d="M 360 1186 L 384 1207 L 362 1229" fill="none" stroke="#a9cddd" stroke-width="2" stroke-linecap="round"/>
<path d="M 345 1210 L 372 1450 A 178 45 0 0 0 728 1450 L 755 1210 A 205 56 0 0 1 345 1210 Z"
fill="url(#glassG)" stroke="#9fc2d2" stroke-width="1.5"/>
<ellipse cx="550" cy="1450" rx="176" ry="44" fill="#cfe7f1" opacity="0.5" stroke="#a9cddd" stroke-width="1"/>
<ellipse cx="550" cy="1452" rx="140" ry="34" fill="none" stroke="#ffffff" stroke-width="2" opacity="0.4"/>
<ellipse cx="550" cy="1210" rx="186" ry="48" fill="#c3e0ec" opacity="0.5" stroke="#a9cddd" stroke-width="1"/>
<ellipse cx="550" cy="1210" rx="205" ry="56" fill="#dceef5" opacity="0.55" stroke="#9fc2d2" stroke-width="1.5"/>
<path d="M 380 1250 C 372 1310 378 1370 390 1425" stroke="#ffffff" stroke-width="12" opacity="0.5" fill="none" stroke-linecap="round"/>
<path d="M 728 1240 C 736 1300 732 1365 722 1420" stroke="#ffffff" stroke-width="6" opacity="0.35" fill="none" stroke-linecap="round"/>
<!-- handle -->
<path d="M 752 1236 C 838 1246 862 1302 850 1360 C 840 1408 792 1428 733 1420"
fill="none" stroke="url(#chromeG)" stroke-width="16" stroke-linecap="round"/>
<circle cx="752" cy="1236" r="7" fill="#6a7076" stroke="#4c5157" stroke-width="1"/>
<circle cx="733" cy="1420" r="7" fill="#6a7076" stroke="#4c5157" stroke-width="1"/>
</g>
<!-- ===== CHROME BASE ===== -->
<g>
<ellipse cx="550" cy="1558" rx="195" ry="40" fill="#60666c"/>
<path d="M 355 1545 A 195 40 0 0 0 745 1545 L 745 1558 A 195 40 0 0 1 355 1558 Z" fill="#7d838a"/>
<ellipse cx="550" cy="1545" rx="195" ry="40" fill="url(#baseG)" stroke="#84898f" stroke-width="0.8"/>
<ellipse cx="550" cy="1543" rx="150" ry="29" fill="#a8aeb4"/>
<ellipse cx="550" cy="1542" rx="118" ry="22" fill="#8d939a"/>
</g>
<!-- ===== CALLOUTS ===== -->
<g stroke="#8a8f94" stroke-width="1.3">
<line x1="602" y1="120" x2="690" y2="120"/>
<line x1="774" y1="610" x2="796" y2="610"/>
<line x1="338" y1="350" x2="538" y2="350"/>
<line x1="338" y1="790" x2="390" y2="790"/>
<line x1="338" y1="930" x2="393" y2="930"/>
<line x1="338" y1="1070" x2="393" y2="1070"/>
<line x1="338" y1="1330" x2="348" y2="1330"/>
<line x1="861" y1="1330" x2="887" y2="1330"/>
<line x1="752" y1="1553" x2="787" y2="1553"/>
<!-- brace grouping the three filter pieces -->
<line x1="742" y1="750" x2="742" y2="1118"/>
<line x1="730" y1="750" x2="742" y2="750"/>
<line x1="730" y1="1118" x2="742" y2="1118"/>
</g>
<g fill="#8a8f94">
<circle cx="596" cy="120" r="3"/>
<circle cx="768" cy="610" r="3"/>
<circle cx="541" cy="350" r="3"/>
<circle cx="393" cy="790" r="3"/>
<circle cx="396" cy="930" r="3"/>
<circle cx="396" cy="1070" r="3"/>
<circle cx="352" cy="1330" r="3"/>
<circle cx="855" cy="1330" r="3"/>
<circle cx="748" cy="1550" r="3"/>
</g>
<g fill="#383e44" font-size="21" font-weight="600">
<text x="700" y="127" text-anchor="start">Knob</text>
<text x="804" y="617" text-anchor="start">Lid</text>
<text x="330" y="357" text-anchor="end">Plunger rod</text>
<text x="330" y="797" text-anchor="end">Cross plate</text>
<text x="330" y="937" text-anchor="end">Mesh screen</text>
<text x="330" y="1077" text-anchor="end">Retaining disc</text>
<text x="330" y="1337" text-anchor="end">Glass carafe</text>
<text x="895" y="1337" text-anchor="start">Handle</text>
<text x="795" y="1560" text-anchor="start">Base</text>
<text x="775" y="934" text-anchor="middle" transform="rotate(-90 775 934)">3-piece plunger filter</text>
</g>
</svg>round 1 of 2
Cross-plate on top of the mesh again, and plates that are the wrong diameter for the glass. Cut off by provider timeouts after round 2.
modelunbiased/paretotasksvg-french-press@v2date2026-09-22rounds2 of 8 allowedcost$0.4528thinkingmediumtokens50,519 in, 52,976 out, of which 0 reasoningtime14 min 1 sfailurepart-order · physical-plausibility
All seven partsdecided by looking · Pass if all seven are drawn as separate shapes and each has a label naming it. A part that is only named in a label or a comment, with nothing drawn, fails it.pass
Stack orderdecided by a number, from the filefail
Filter fits the glassdecided by a number, from the filefail
One assembly axisdecided by looking · Pass if one vertical line runs through the middle of every part, and every leader line leaves from the same side. One part pushed off to the side fails it.pass
Labels matchdecided by looking · Pass if following each leader line from its label ends on the part that label names. One label pointing at the wrong part, or at nothing, fails it.pass
There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.
Draw an exploded assembly diagram of a French press, as an SVG. Use the standard three-piece plunger filter rather than a two-piece travel press.Frozen at v2. This model got this and nothing else.
The standard three-piece plunger, from the top down: spiral (spring) plate, mesh screen, cross-plate. The cross-plate is the bottom piece, because its threaded stem is what the rod screws into. The spiral plate above the mesh is what presses the mesh edge out against the glass. Checked against the WebstaurantStore anatomy diagram, which is drawn exploded and labelled, and against each part's y coordinate in the SVG rather than its comment. Two-piece travel presses exist and stack differently, which is why v2 of the prompt names the design. How it is scored, and this run's files on GitHub.
