TikZ: a three-set coffee Venn diagram, by command-a-plus
command-a-plus · round 4 of 4 · seed 2$0.06SVGPNGPDFvenn.tex
venn.tex · 47 lines
\documentclass[tikz,border=5pt]{standalone}
\usepackage{tikz}
\usetikzlibrary{calc}
\begin{document}
\begin{tikzpicture}[scale=1.0, every node/.style={font=\sffamily}]
% Circle parameters
\def\radius{1.5}
\coordinate (A) at (0,0);   % Has espresso
\coordinate (B) at (2,0);   % Has milk
\coordinate (C) at (1,{sqrt(3)}); % Served cold

% Draw circles
\draw[thick] (A) circle (\radius);
\draw[thick] (B) circle (\radius);
\draw[thick] (C) circle (\radius);

% Circle labels (outside circles)
\node at (-2.5, 1) {\large Has espresso};
\node at (4, 1) {\large Has milk};
\node at (1, 4) {\large Served cold};

% Drink names in appropriate regions
% Outside all circles
\node at (1,-2) {\small pour-over};

% A only (espresso only)
\node at (-1.2,0) {\small short black};

% B only (milk only)
\node at (3.2,0.5) {\small babyccino};

% C only (cold only)
\node at (1,2.3) {\small cold brew};

% A∩B only (espresso + milk)
\node at (1,-0.6) {\small flat white};

% A∩C only (espresso + cold)
\node at (0.3,0.9) {\small iced long black};

% B∩C only (milk + cold)
\node at (2.2,1.2) {\small milkshake};

% A∩B∩C (espresso + milk + cold)
\node at (1,{sqrt(3)/3}) {\small iced latte};
\end{tikzpicture}
\end{document}

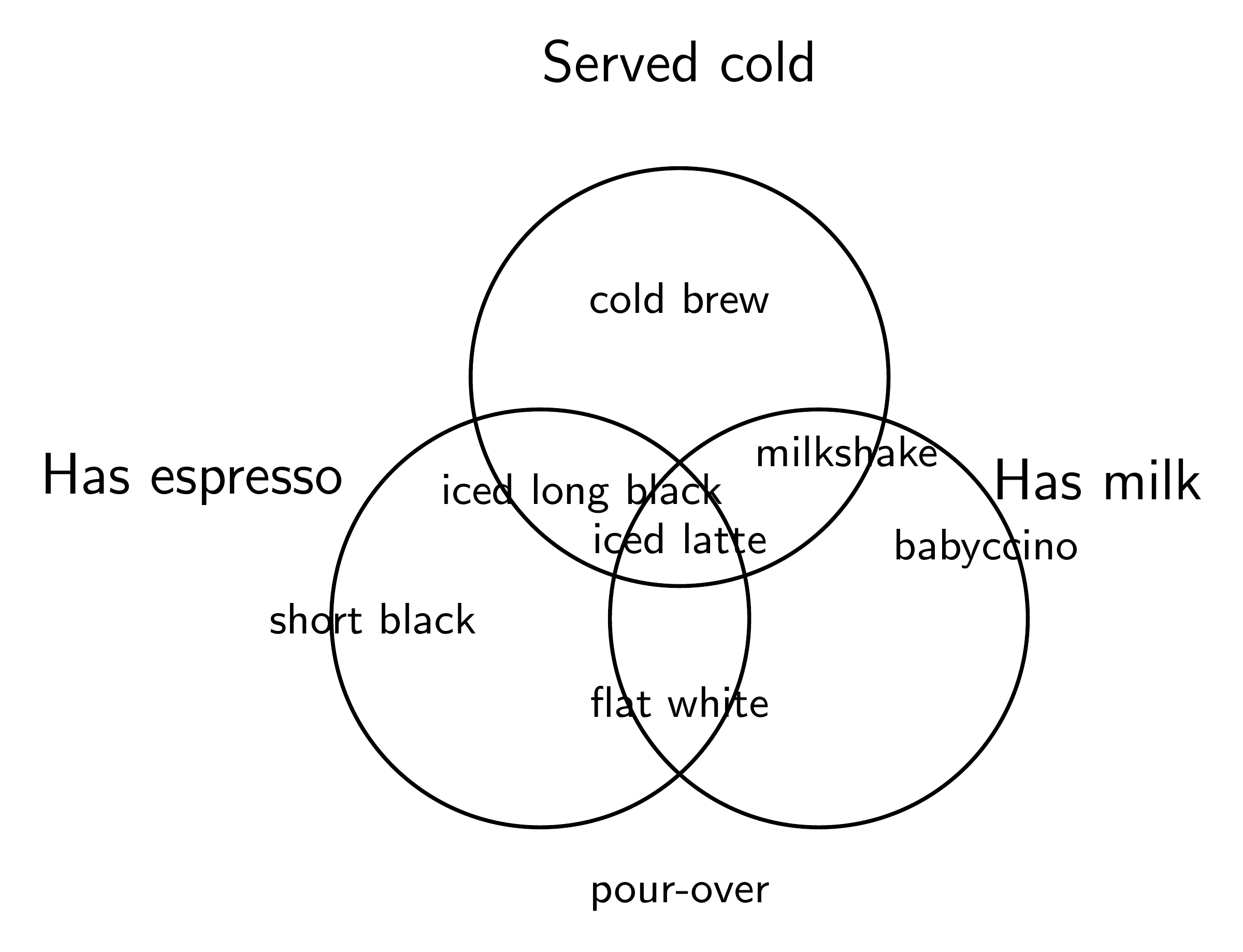

A three-set coffee Venn diagram: Command A+

modelcohere/command-a-plustasktikz-coffee-venn@v1date2026-09-27rounds4 of 8 allowedcost$0.0569thinkingmediumtokens84,708 in, 20,972 out, of which 18,198 reasoningtime1 min 51 sfailurelabelling
Compilesdecided by a number, from the filepass
Seven regions, three namesdecided by a number, from the filepass
Every drink in its regiondecided by a number, from the filepass
No label on an edgedecided by a number, from the filefail

There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.

its other runs
the prompt it was given
Using LaTeX and TikZ, draw a Venn diagram of three overlapping circles labelled "Has espresso", "Has milk" and "Served cold". Write each of these drinks in the region where it belongs: short black, flat white, iced latte, iced long black, cold brew, babyccino, milkshake, pour-over.
Frozen at v1. This model got this and nothing else.
ground truth

Short black is espresso only, flat white espresso and milk, iced long black espresso and cold, iced latte all three, babyccino milk only, milkshake milk and cold, cold brew cold only, and pour-over outside every circle. The circles and words are read back out of the compiled PDF, each word has to be centred in its own region, and no letter may touch a circle's outline, with the line's width counted. How it is scored, and this run's files on GitHub.
