venn.tex · 43 lines
\documentclass{standalone}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}[scale=1]
% Parameters for Venn diagram
\def\radius{2} % radius of circles
\def\distanceEM{3} % distance between espresso and milk centers (horizontal)
\def\distanceMC{3} % distance between milk and cold centers (used for equilateral triangle)
% Circle positions forming an equilateral triangle
\coordinate (E) at (0,0); % Has espresso
\coordinate (M) at (\distanceEM,0); % Has milk
\coordinate (C) at ({\distanceEM/2},{\distanceMC*sqrt(3)/2}); % Served cold
% Draw circles with light fills for clarity
\fill[blue!10] (E) circle (\radius);
\fill[red!10] (M) circle (\radius);
\fill[green!10] (C) circle (\radius);
% Draw circle outlines and labels
\draw (E) circle (\radius) node[left=10pt] {Has espresso};
\draw (M) circle (\radius) node[right=10pt] {Has milk};
\draw (C) circle (\radius) node[above=10pt] {Served cold};
% Place drink names in appropriate Venn regions
% Region definitions (approximate centers):
% None of the sets (pour-over)
\node at (-5,-2.5) {pour-over};
% Only espresso (short black)
\node at (-2.5,-0.5) {short black};
% Only milk (babyccino)
\node at (5.5,-0.5) {babyccino};
% Only cold (cold brew)
\node at (1.5,4.6) {cold brew};
% Espresso + milk (not cold) (flat white)
\node at (1.4,-1.3) {flat white};
% Espresso + cold (not milk) (iced long black)
\node at (0.3,1.7) {iced long black};
% Milk + cold (not espresso) (milkshake)
\node at (3,1.7) {milkshake};
% All three (iced latte)
\node at (1.5,1.4) {iced latte};
\end{tikzpicture}

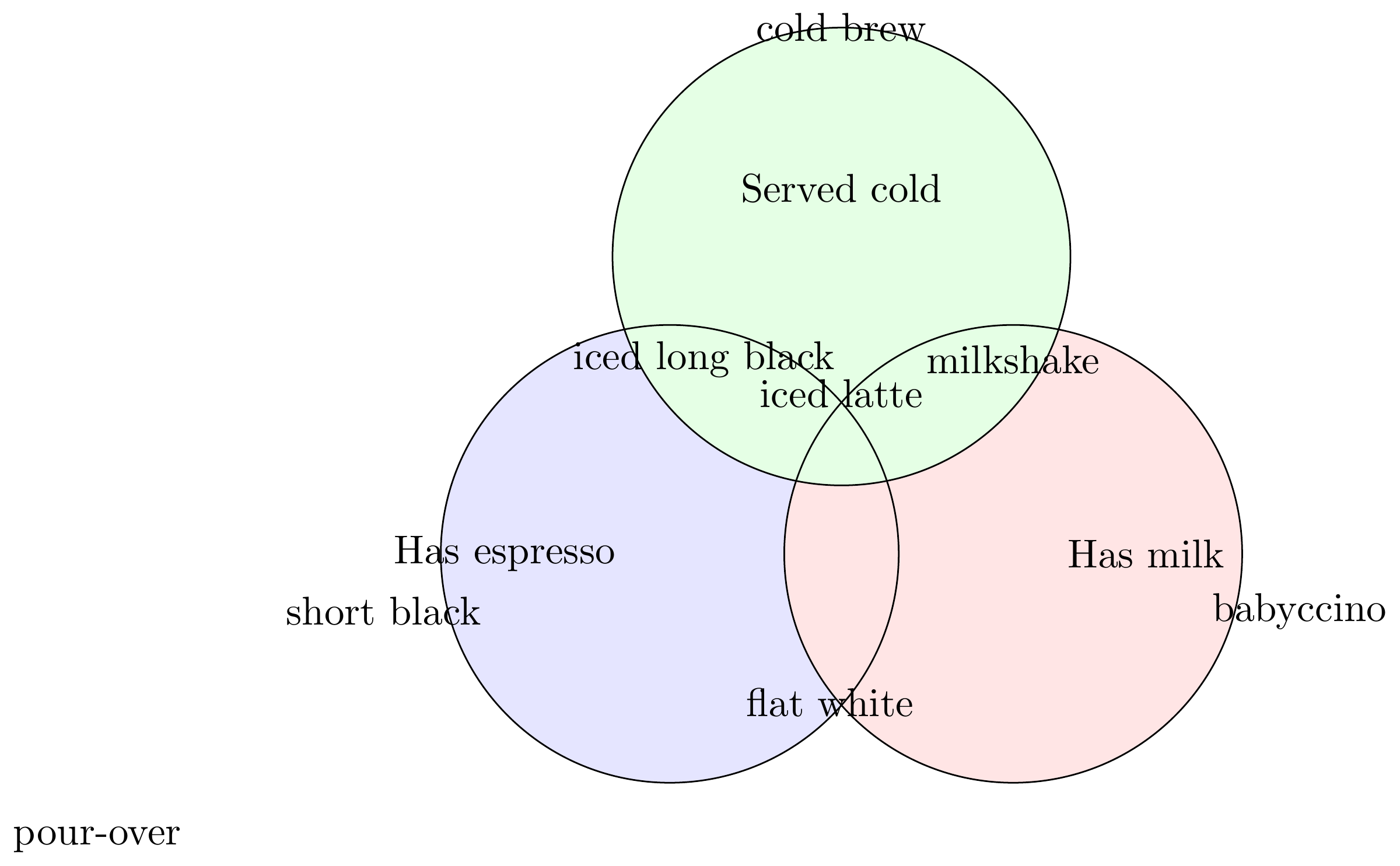

\end{document}A three-set coffee Venn diagram: Command A+
modelcohere/command-a-plustasktikz-coffee-venn@v1date2026-09-27rounds3 of 8 allowedcost$0.0340thinkingmediumtokens54,386 in, 11,801 out, of which 9,338 reasoningtime1 min 19 sfailurelabelling
Compilesdecided by a number, from the filepass
Seven regions, three namesdecided by a number, from the filepass
Every drink in its regiondecided by a number, from the filefail
No label on an edgedecided by a number, from the filefail
There is no post about this one, since only some results need one, so the picture, the source and the scoring are here instead.
run 1 · 6r · $0.0753
run 2 · 4r · $0.0569same prompt, other modelsall 50 runs on A three-set coffee Venn diagram →
Using LaTeX and TikZ, draw a Venn diagram of three overlapping circles labelled "Has espresso", "Has milk" and "Served cold". Write each of these drinks in the region where it belongs: short black, flat white, iced latte, iced long black, cold brew, babyccino, milkshake, pour-over.Frozen at v1. This model got this and nothing else.
Short black is espresso only, flat white espresso and milk, iced long black espresso and cold, iced latte all three, babyccino milk only, milkshake milk and cold, cold brew cold only, and pour-over outside every circle. The circles and words are read back out of the compiled PDF, each word has to be centred in its own region, and no letter may touch a circle's outline, with the line's width counted. How it is scored, and this run's files on GitHub.
